Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so as not to damage it by striking against other parts.
The front hub assembly should not be dissembled. When removing the front hub assembly, the wheel bearing inner race may be left at the spindle side. In this case, always replace the front hub assembly, otherwise the hub will damage the oil seal, causing oil leaks or excessive play.

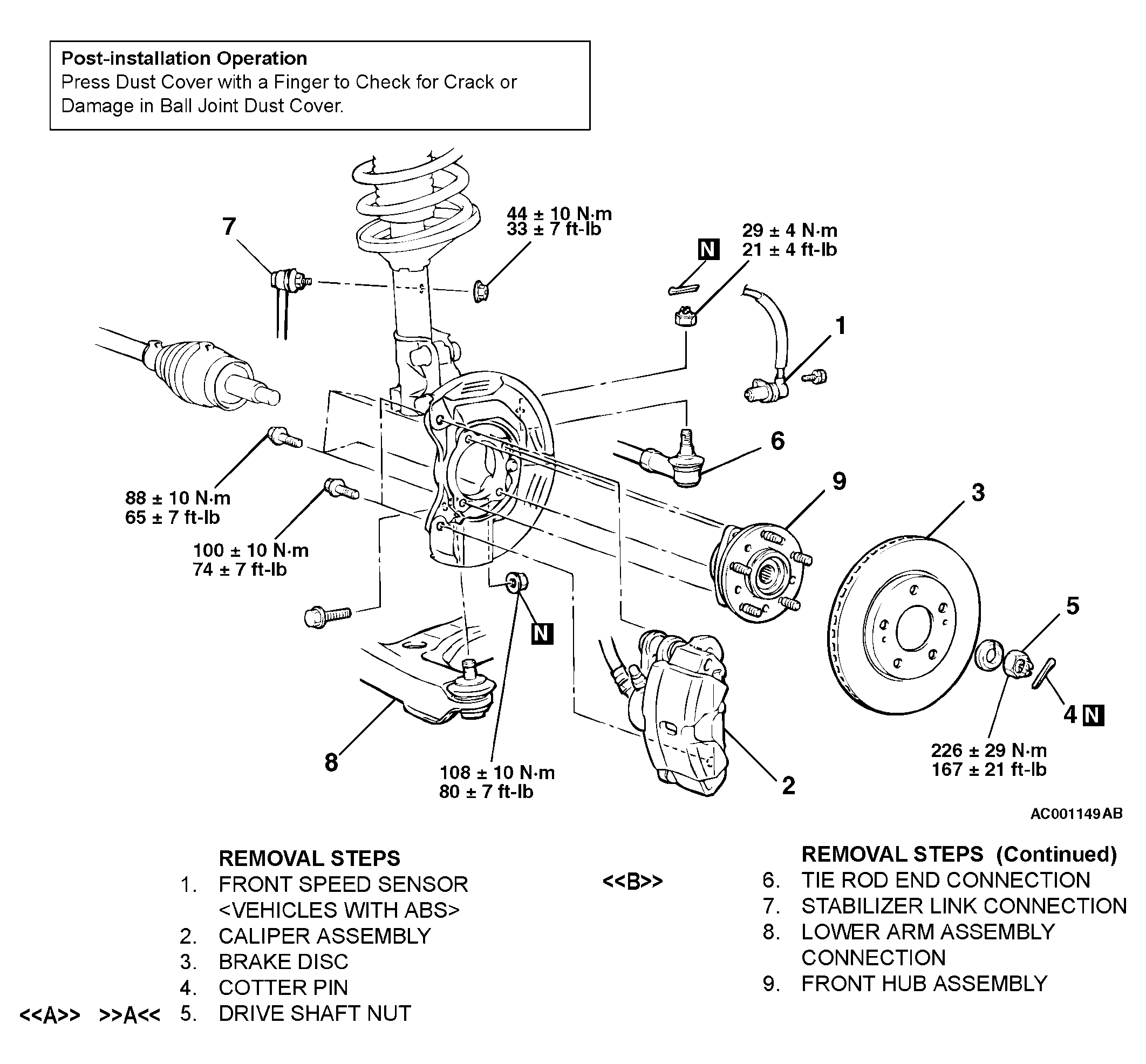

Fig 1: Removing/Installing Front Axle Hub Assembly

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:
