Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

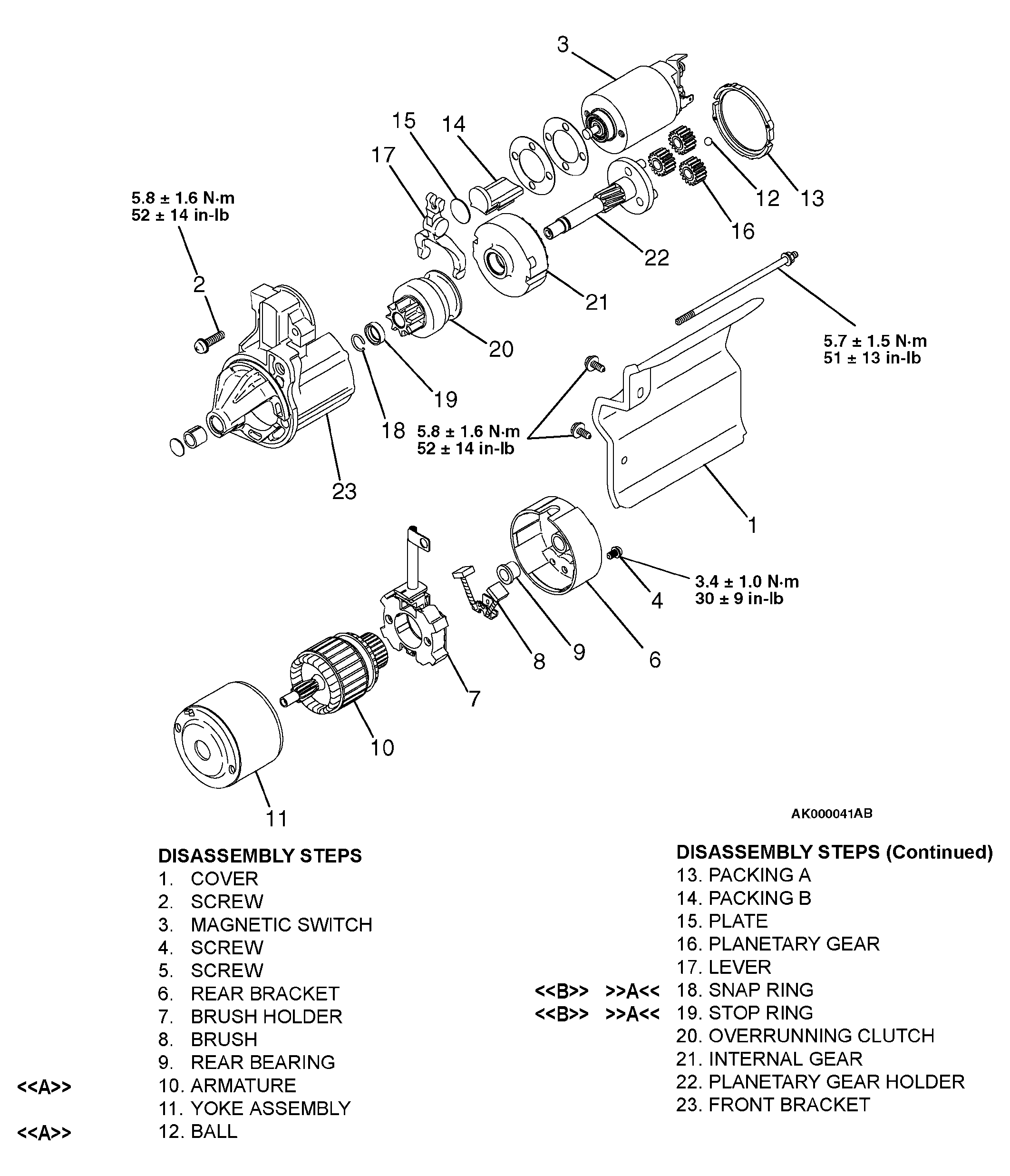

Fig 1: Exploded View Of Starter Motor Assembly
G04537400Courtesy of DAIMLERCHRYSLER CORPORATION
