Installation - 2.7L

The sensor mounts onto intake manifold plenum (Fig 1). Tighten screws to 4.5 N.m (40 in. lbs.) torque.

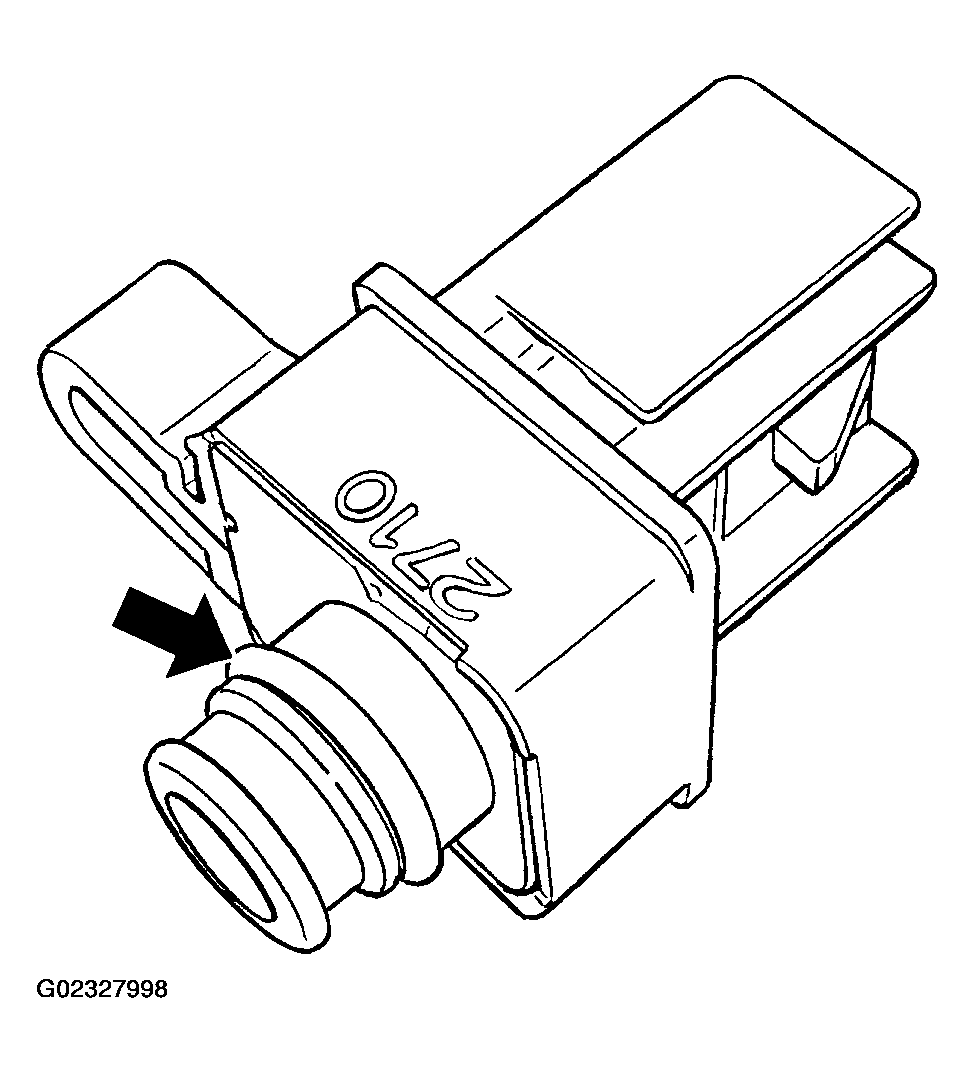

Fig 1: Map Sensor O-Ring
Courtesy of DAIMLERCHRYSLER CORPORATION

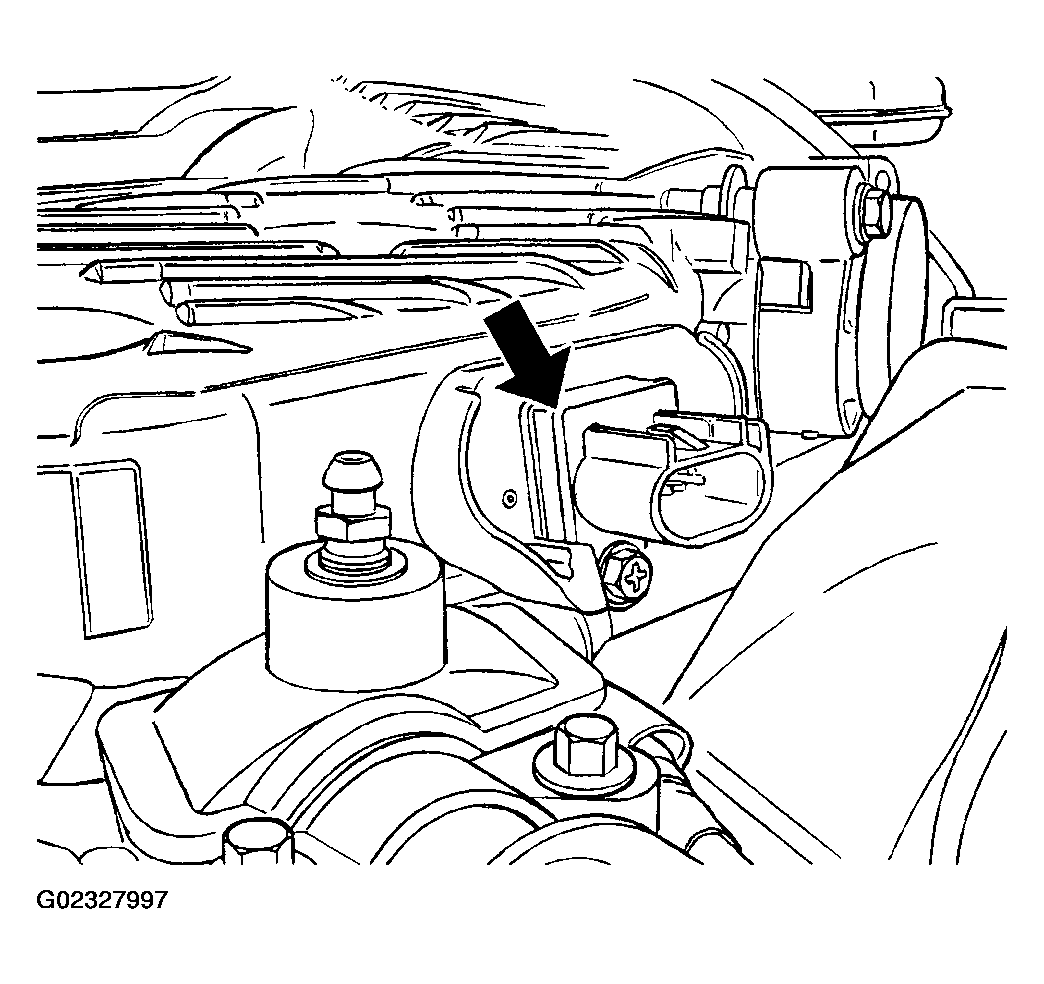

Attach electrical connector to sensor (Figure).
Install the negative battery cable.
