Installation - 2.7L

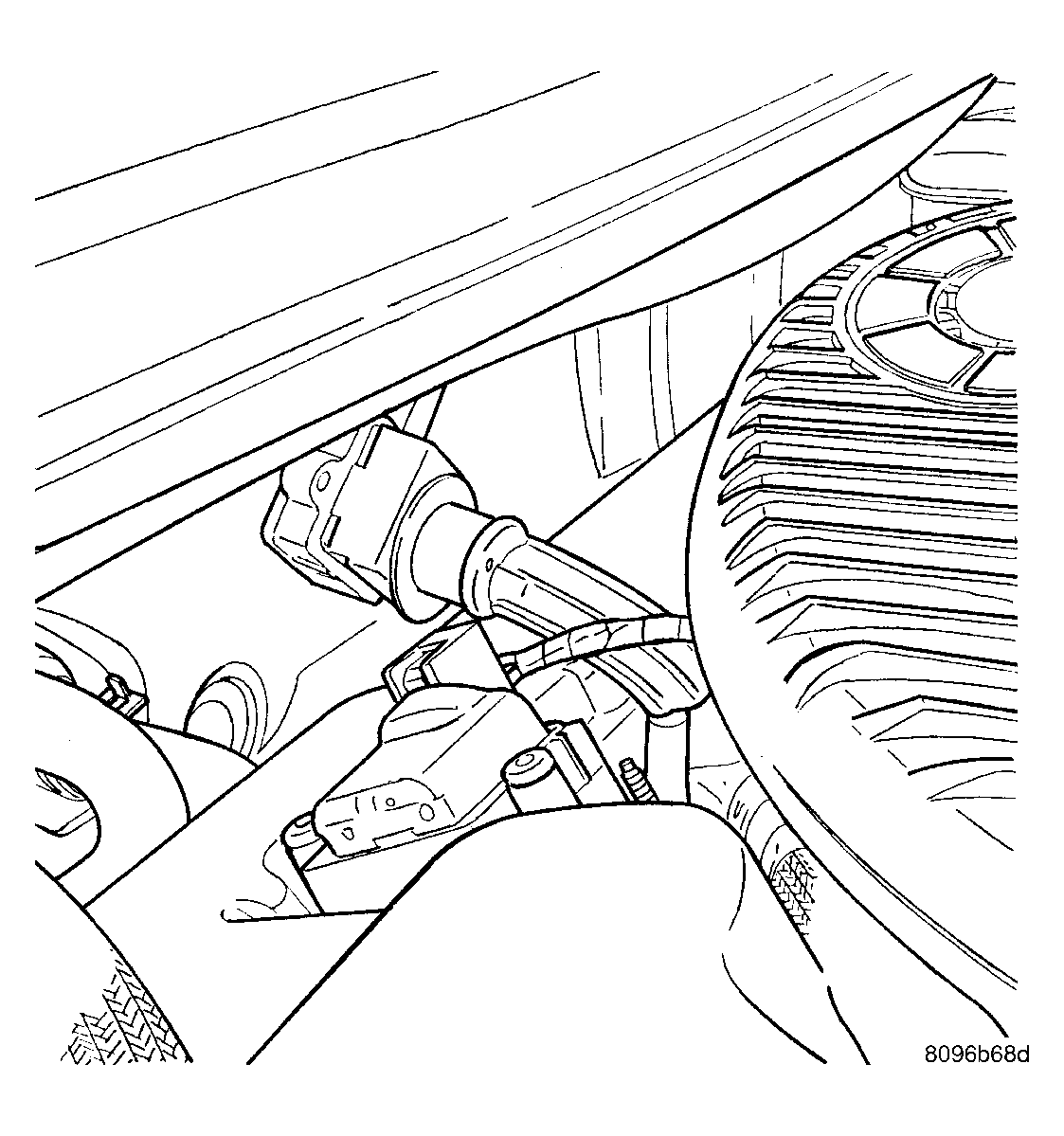

  1. Install ignition coil assembly for spark plug. See Figure.
  2. Install coil screws and tighten to 6.2 N.m (55 in. lbs.).
  3. Connect the electrical connector.
