Left Speed Control Switch - White 2 Way
Left Speed Control Switch - White 2 Way

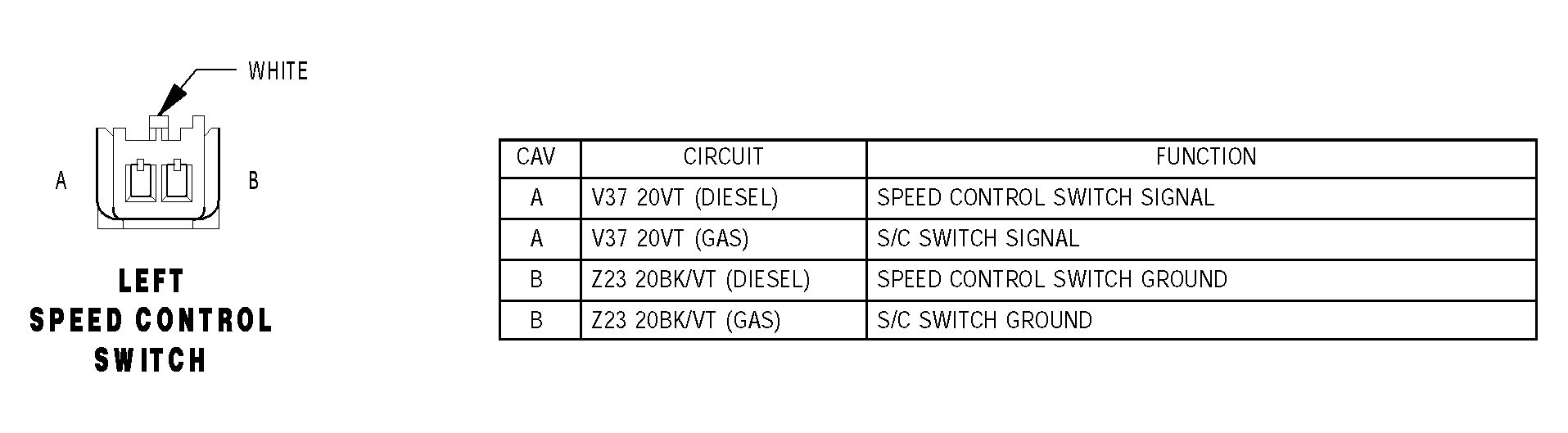

Fig 1: Identifying Left Speed Control Switch - White 2 Way Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
