Schematic Diagrams

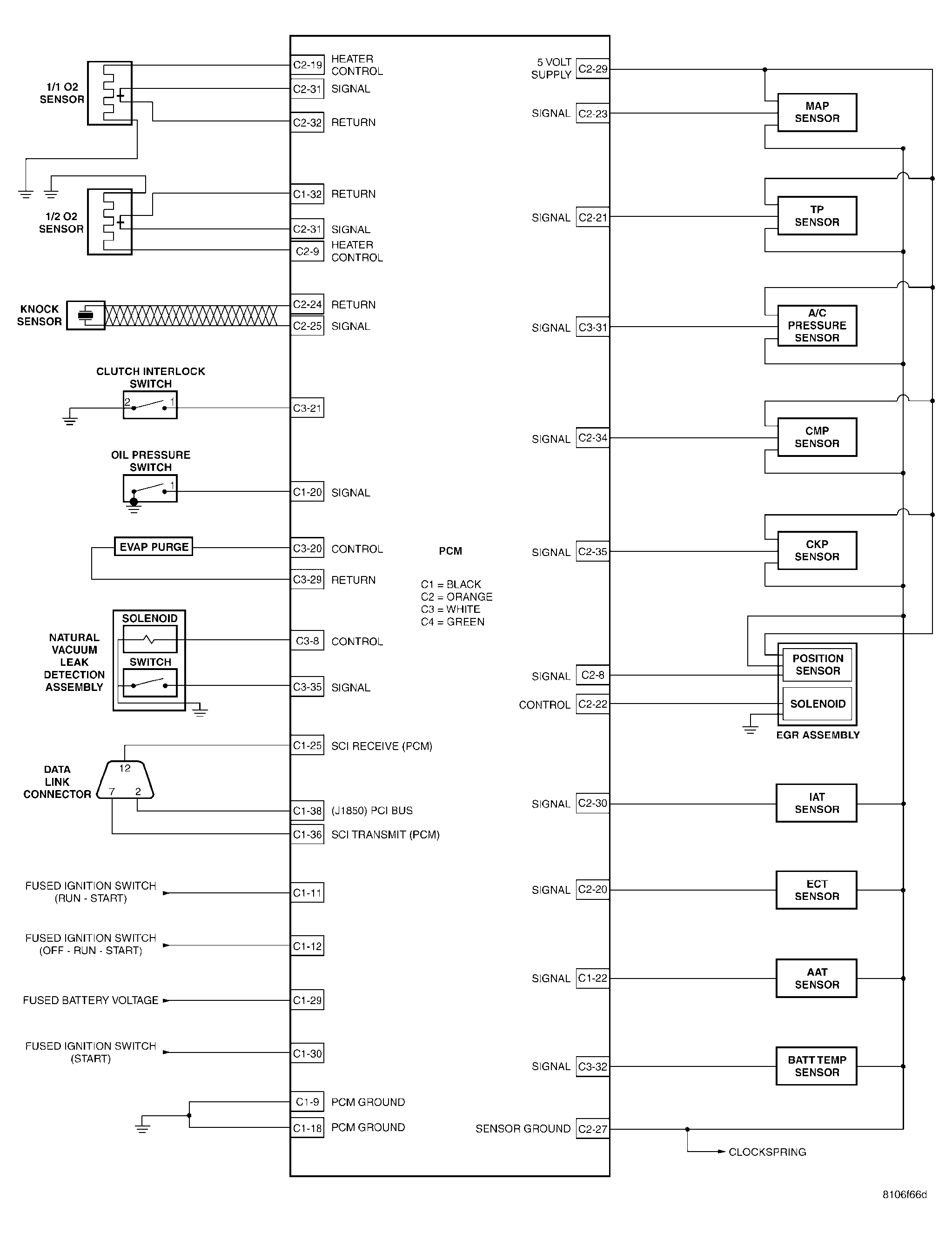

Fig 1: PCM Wiring Diagram (1 Of 2)
G04549271Courtesy of DAIMLERCHRYSLER CORP.

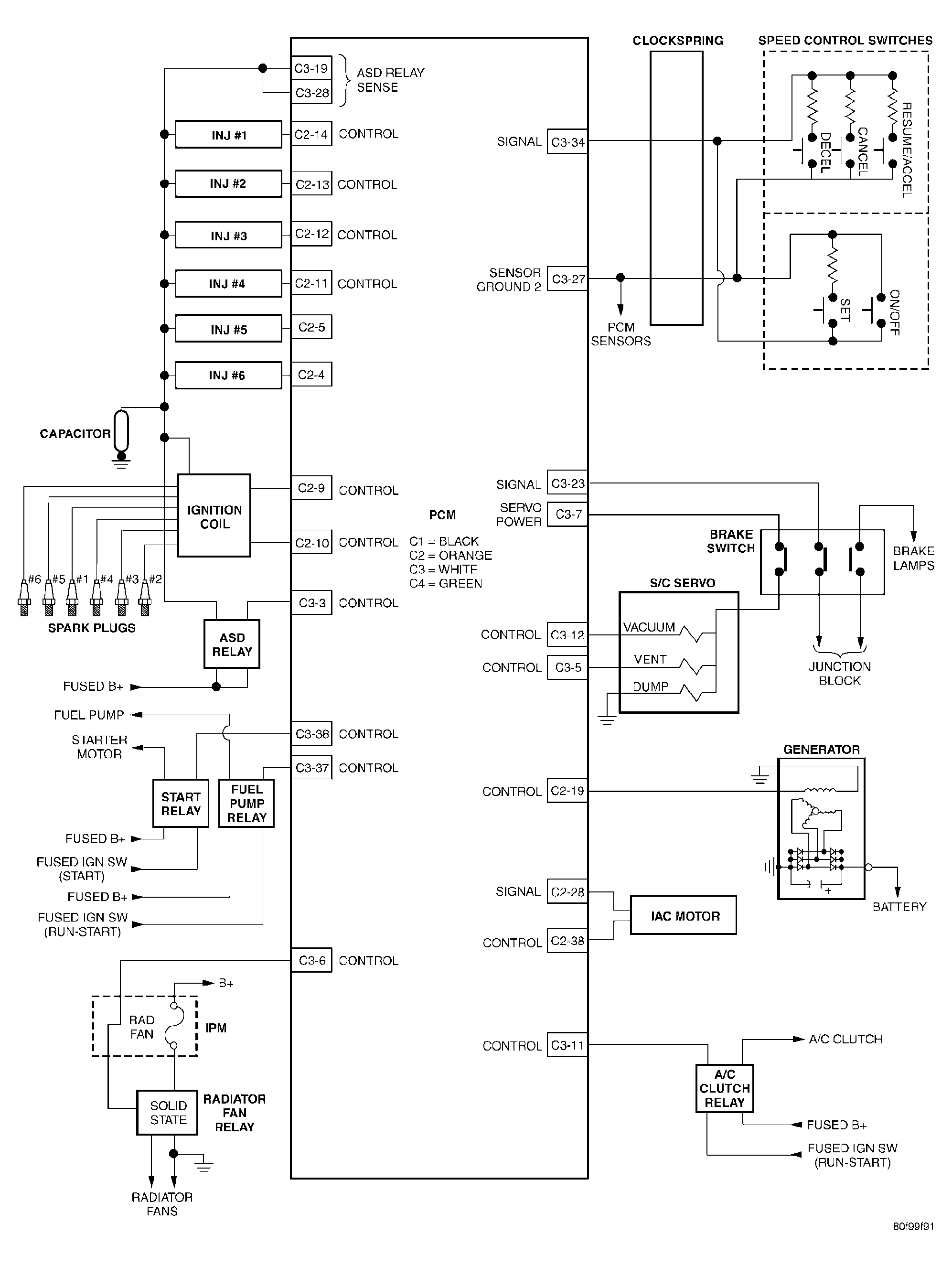

Fig 2: PCM Wiring Diagram (2 Of 2)
G04549272Courtesy of DAIMLERCHRYSLER CORP.
