Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Integrated Power Module
Integrated Power Module

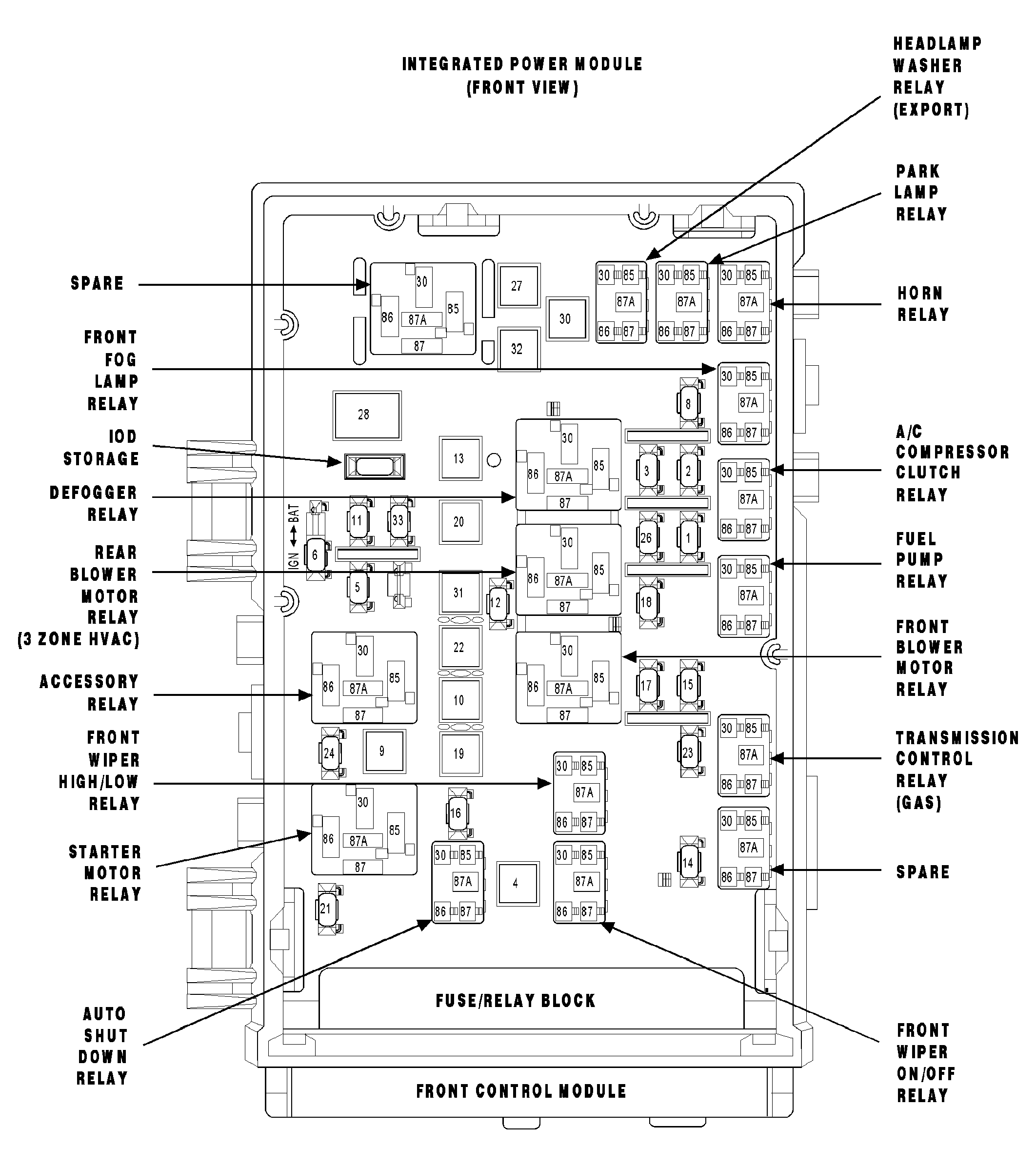

Fig 1: Identifying Integrated Power Module (Front View)
Courtesy of DAIMLERCHRYSLER CORP.

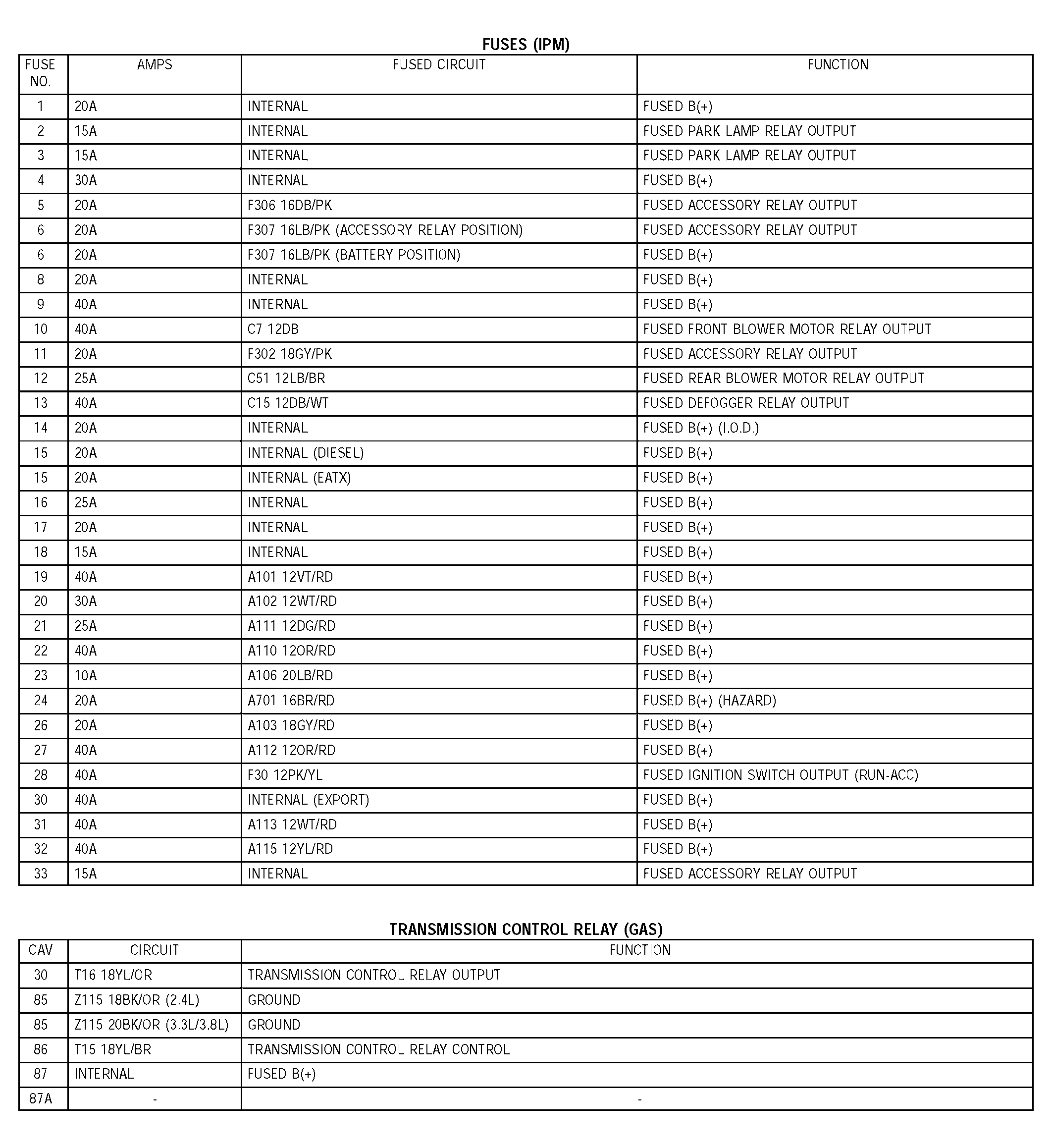

Fig 2: Identifying Integrated Power Module Fuses & Relays
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
