Sensor-Camshaft Position: Installation

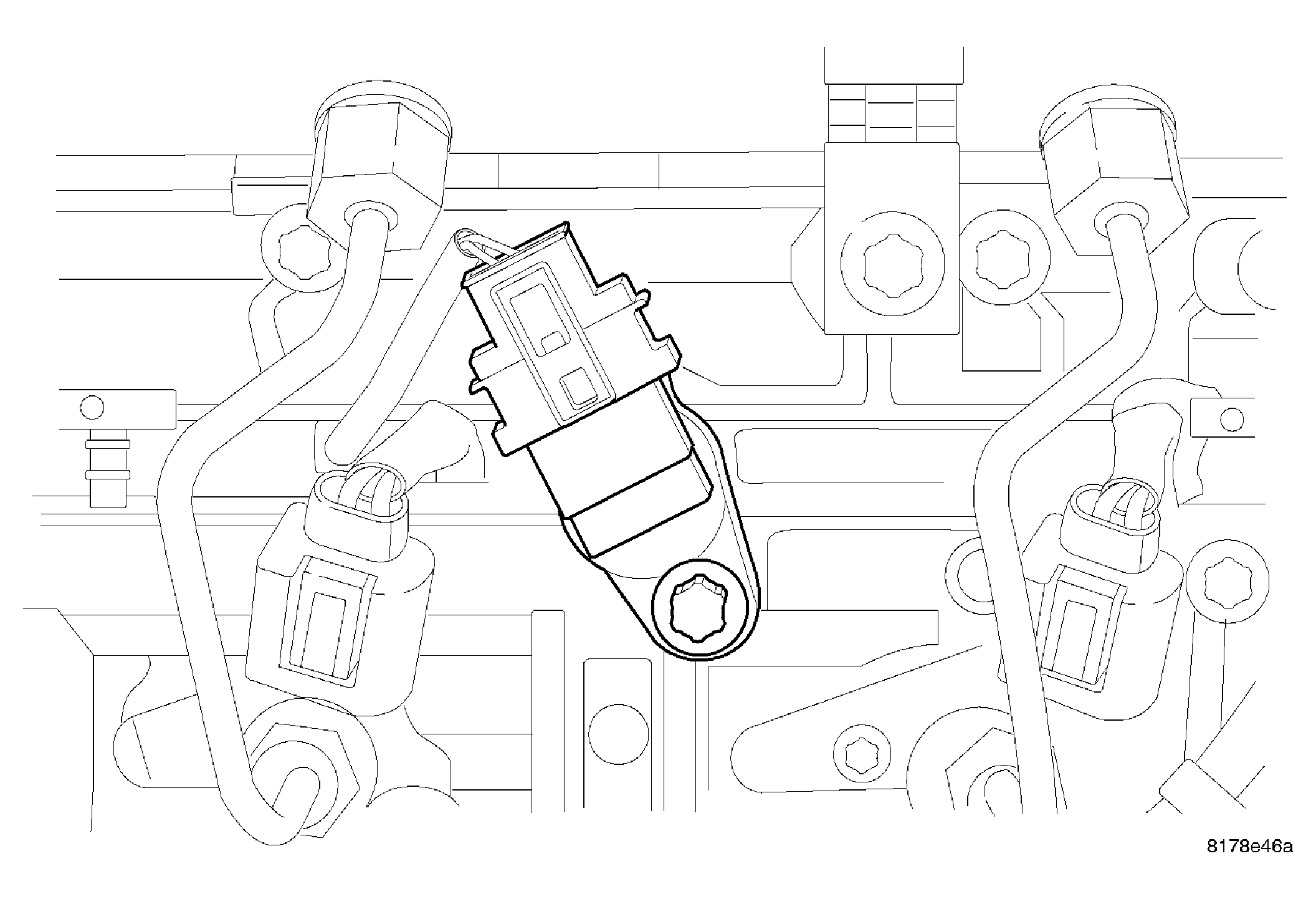

Fig 1: Locating Cmp Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Install camshaft position sensor and tighten bolt to 8 N.m (71 in.lbs.).
2. Reconnect electrical connector.
3. Install engine cover.
4. Reconnect negative battery cable.
