Circuit Schematic

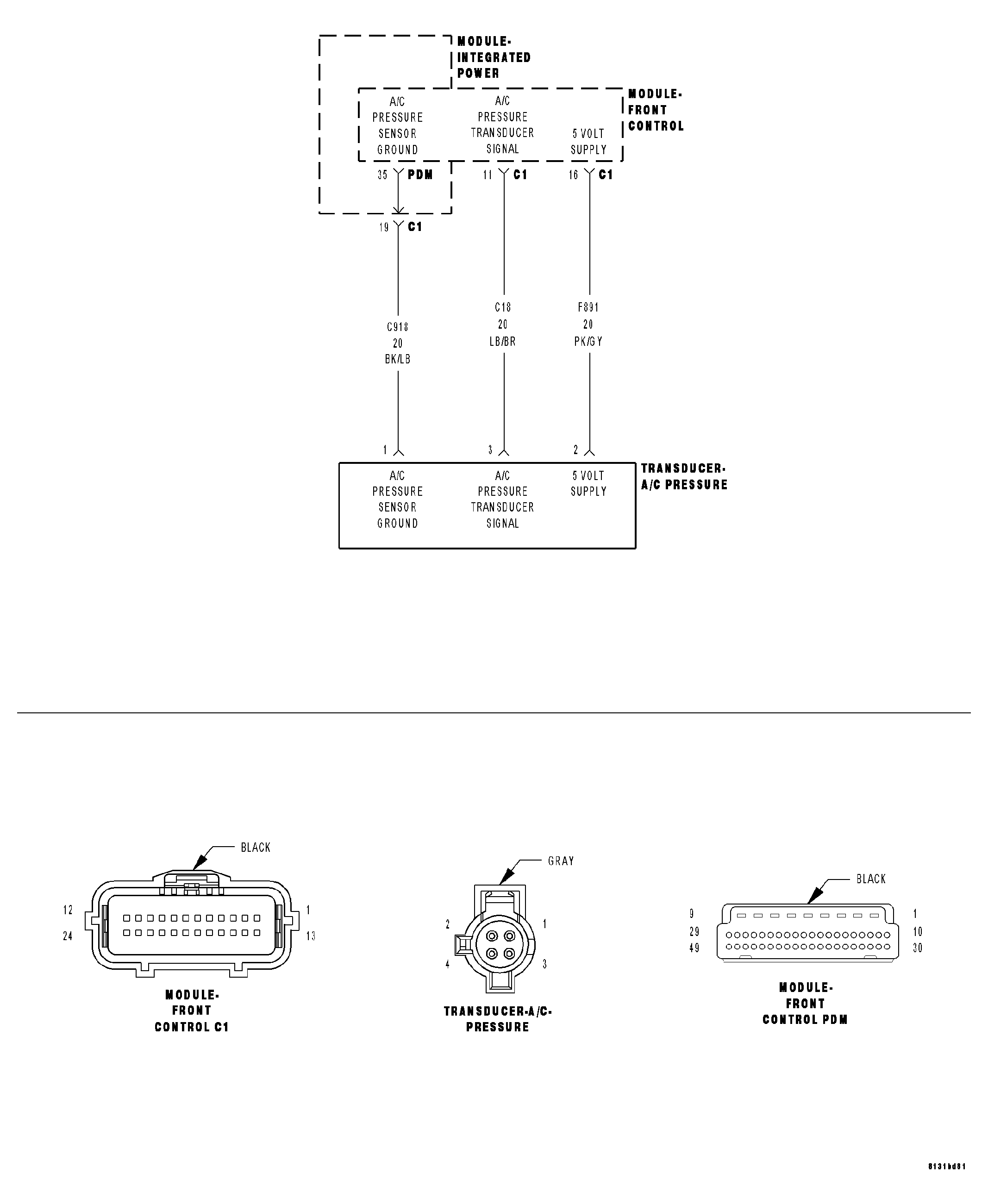

Fig 1: A/C Pressure Transducer Circuit Schematic
GC0015029Courtesy of DAIMLERCHRYSLER CORP.
