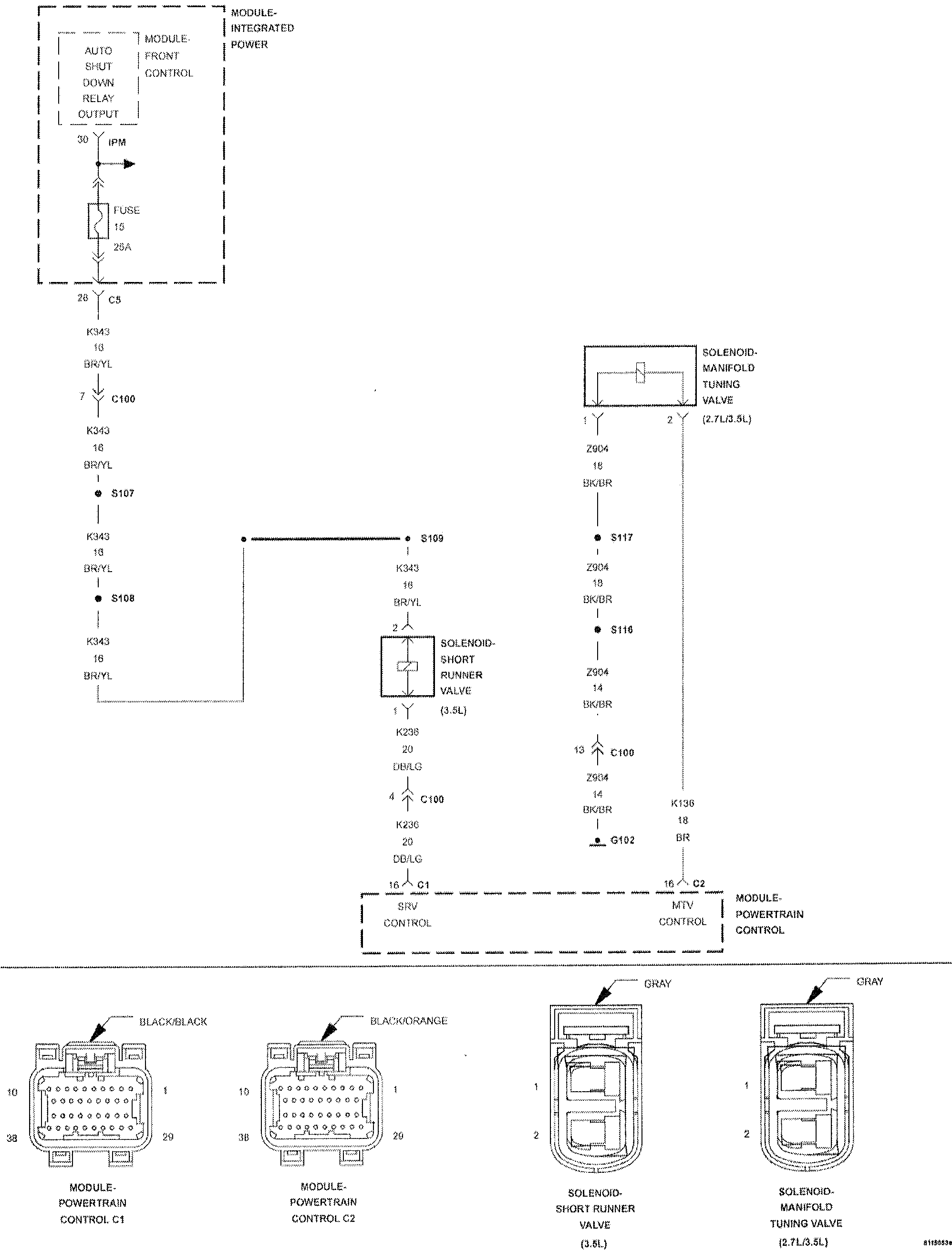

Home › Chrysler › 2006 › 300 Base, 42RLE/VLP › Repair and Diagnosis › Engine Performance › System › Engine Controls - DTCS P0700 To P1897 › Diagnosis And Testing › P1004-Short Runner Valve Control Performance › Circuit Schematic
