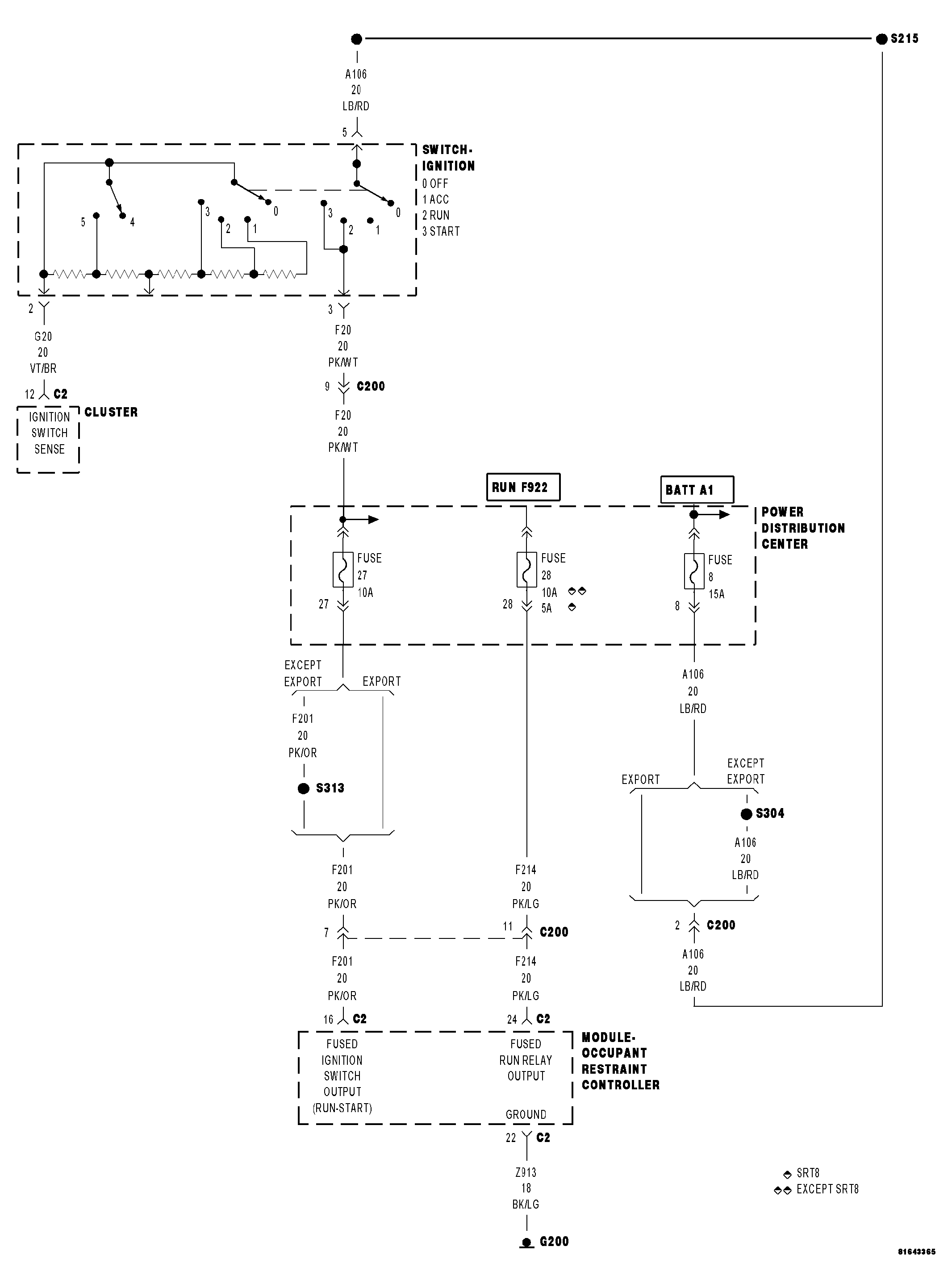

Home › Chrysler › 2006 › 300 Base, 42RLE/VLP › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1B7F To B210D › Diagnosis And Testing › B2101-Ignition Run/Start Input Circuit Low › Circuit Schematic
