3.5L Engine

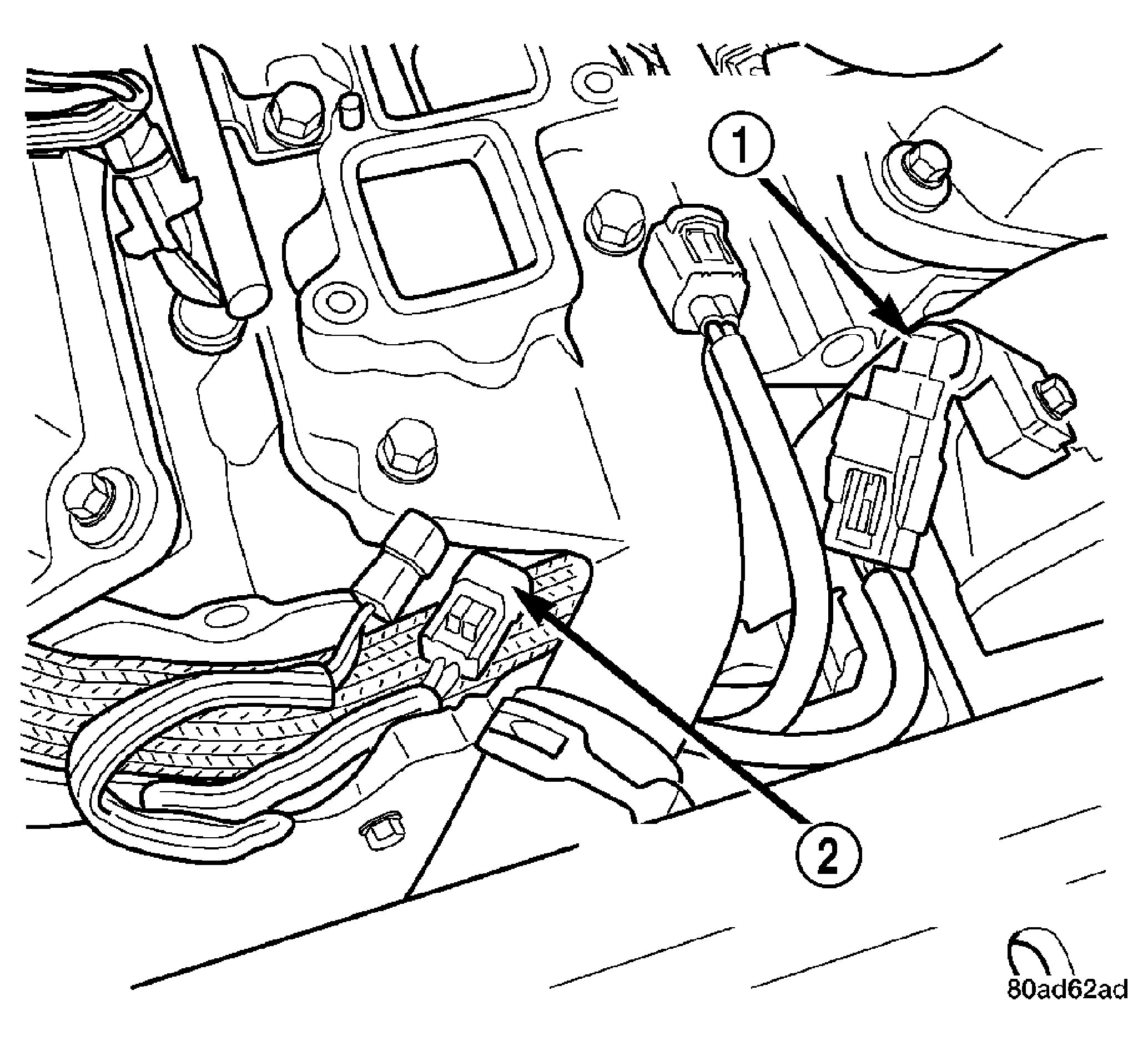

Fig 1: Engine Coolant Temperature Sensor - 3.5L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CAMSHAFT POSITION SENSOR

2 - ENGINE COOLANT TEMPERATURE SENSOR

Install engine coolant temperature sensor (2). Tighten sensor to 28 N.m (20 ft. lbs.) torque.
Attach electrical connector to sensor.
Connect negative battery cable.
