5.7L/6.1L Engine

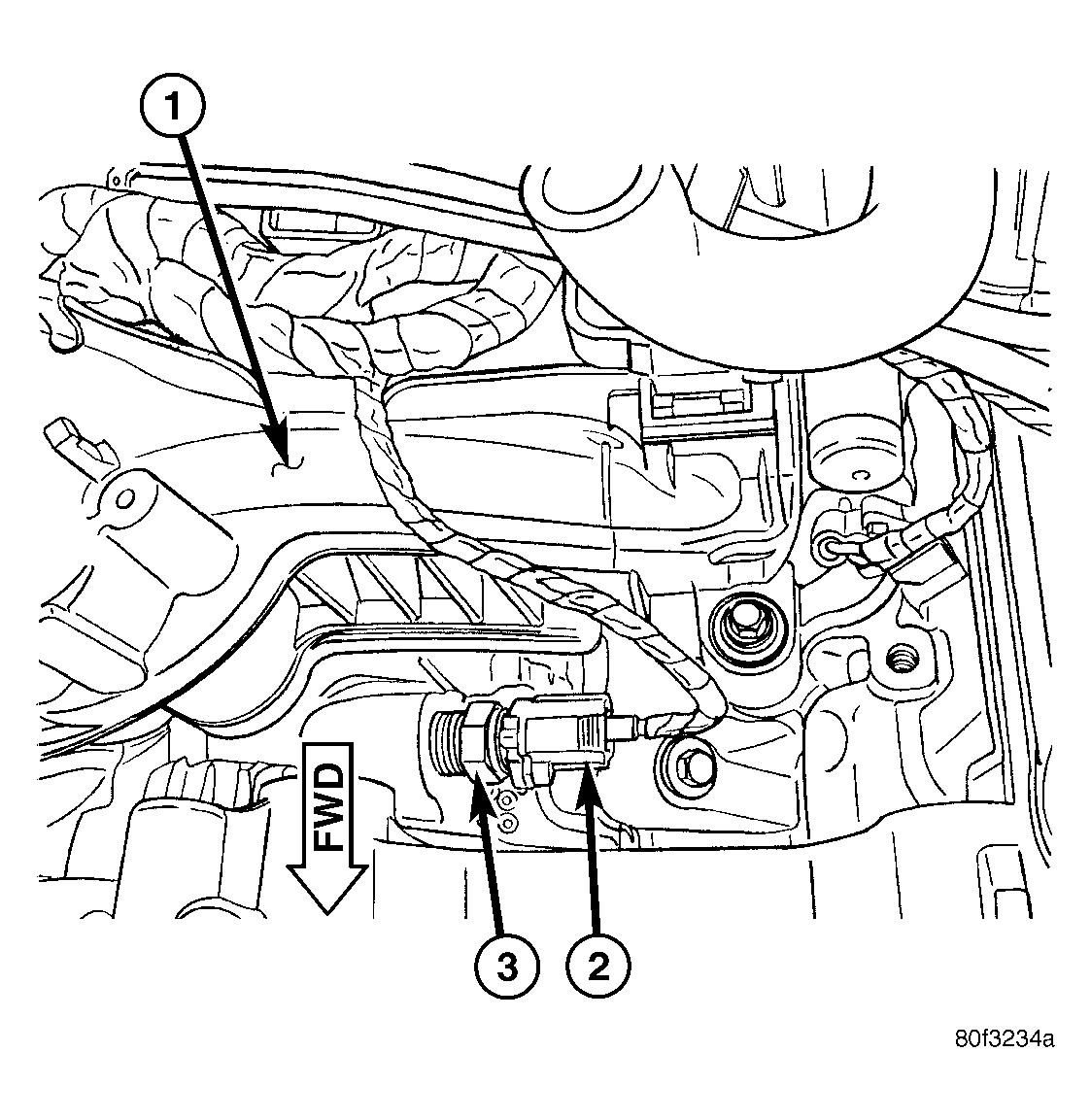

Fig 1: Remove/Install ECT 5.7L

GC0014699

Courtesy of DAIMLERCHRYSLER CORP.

Apply thread sealant to sensor threads.
Install ECT sensor (3) to engine.
Tighten sensor to 11 N.m (97.3 in. lbs.) torque.
Connect electrical connector (2) to ECT sensor (3).
Fill the cooling system (Refer to COOLING - STANDARD PROCEDURE) .
