3.5L Engine

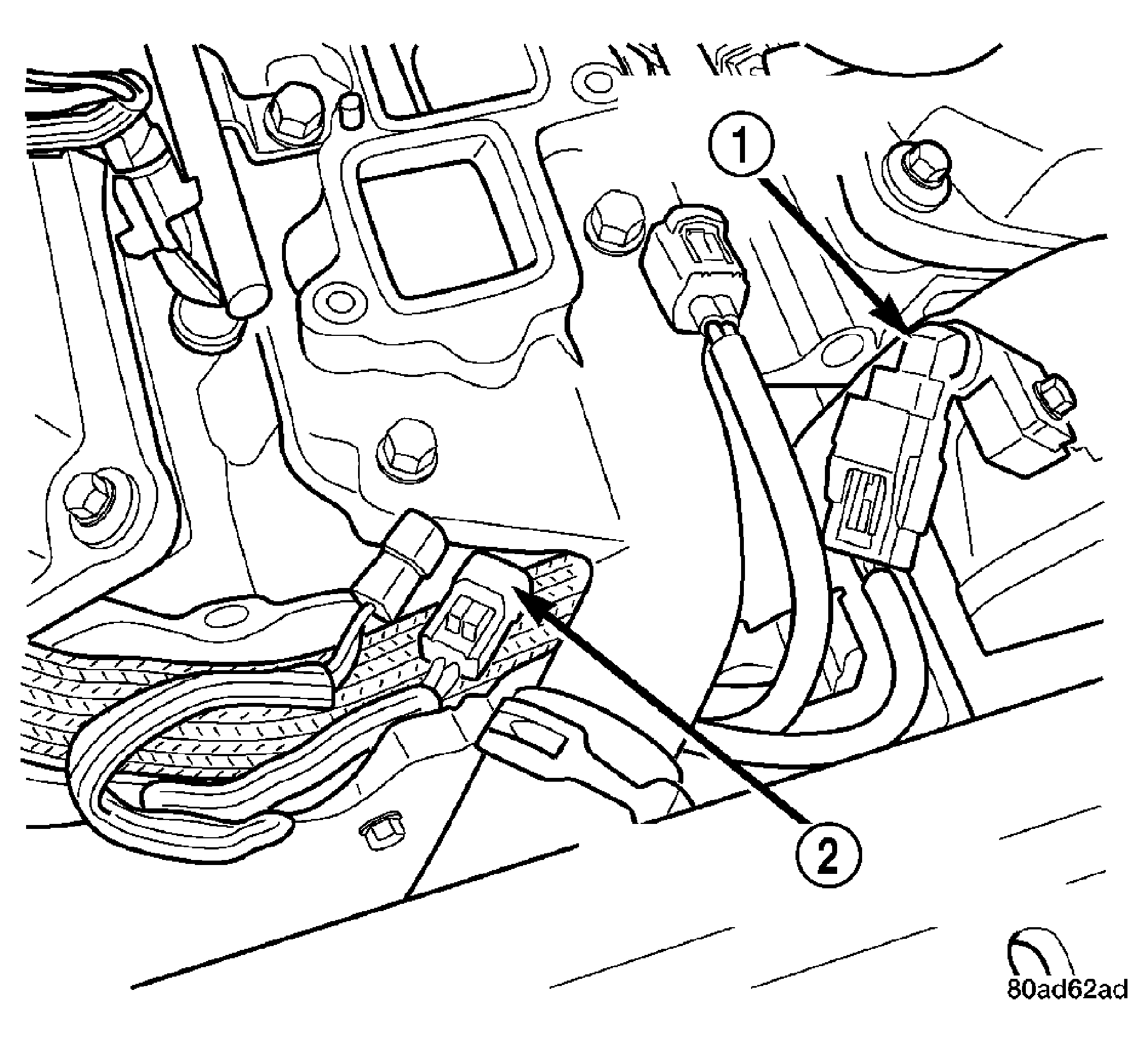

Fig 1: Engine Coolant Temperature Sensor - 3.5L

GC0014701

Courtesy of DAIMLERCHRYSLER CORP.

1 - CAMSHAFT POSITION SENSOR

2 - ENGINE COOLANT TEMPERATURE SENSOR

Disconnect negative battery cable.
Partially drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
With the engine cold, disconnect coolant sensor electrical connector.
Remove sensor (2).
