Service Information: Description: Notes

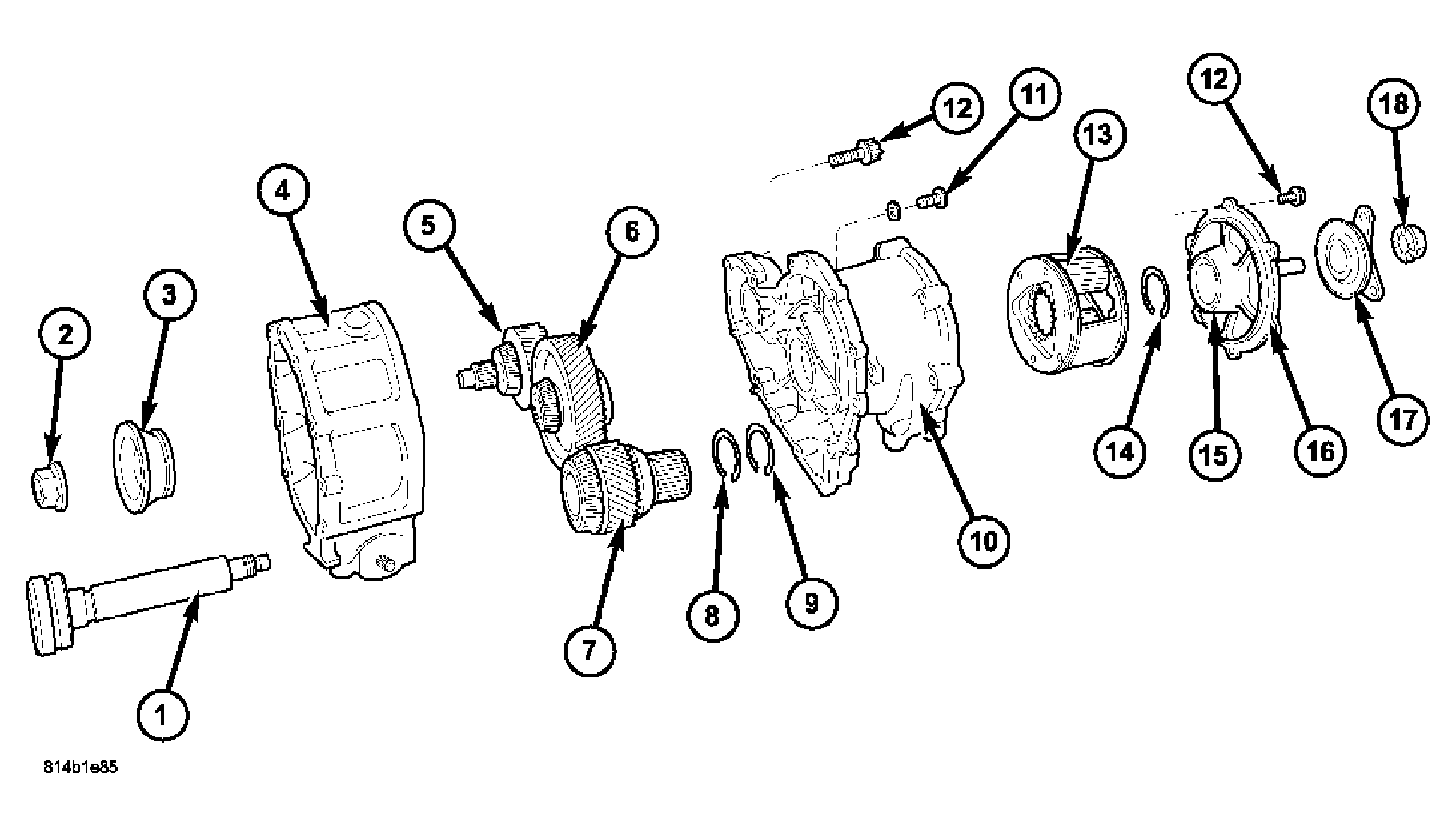

Fig 1: MS140 Exploded View

Courtesy of DAIMLERCHRYSLER CORP.

1 - INPUT SHAFT	10 - REAR TRANSFER CASE HOUSING
2 - FRONT OUTPUT SHAFT NUT	11 - OIL DRAIN PLUG
3 - FRONT OUTPUT SHAFT FLANGE	12 - BOLTS
4 - FRONT TRANSFER CASE HOUSING	13 - PLANETARY GEAR SYSTEM
5 - FRONT OUTPUT SHAFT	14 - SNAP-RING
6 - INTERMEDIATE GEAR	15 - REAR OUTPUT SHAFT
7 - HOLLOW SHAFT	16 - TRANSFER CASE COVER
8 - WASHER	17 - REAR OUTPUT SHAFT FLANGE
9 - SNAP-RING	18 - REAR OUTPUT SHAFT NUT

The MS140 is an all-wheel-drive transfer case system that divides power between the front and rear differentials and transmits power to both axles at all times. Its planetary center differential (13) delivers approximately 62 percent of the engine torque to the rear axle and 38 percent to the front. See Fig 1.
