Circuit Schematic

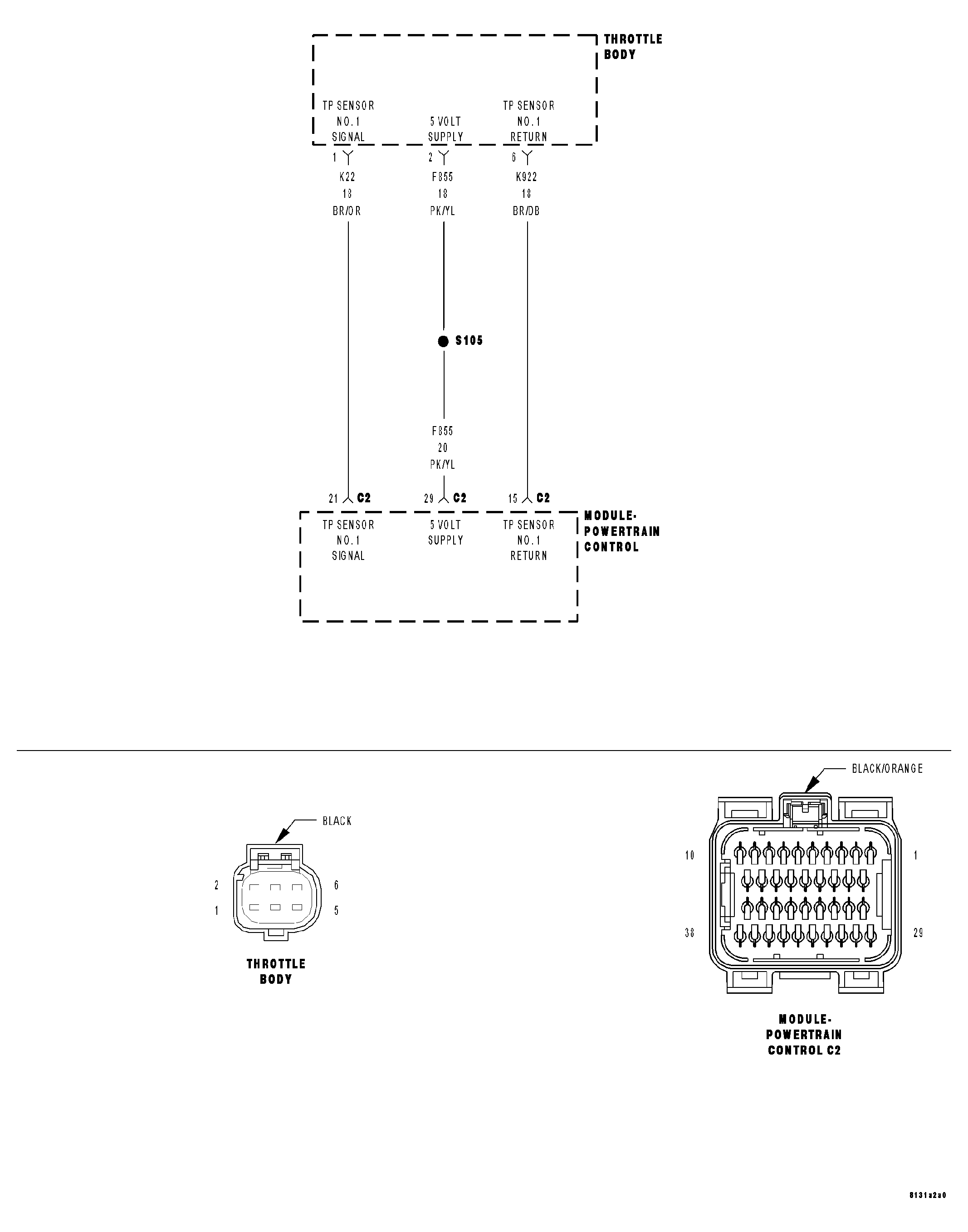

Fig 1: Throttle Position Sensor No. 1 Circuit Schematic
GC0014787Courtesy of DAIMLERCHRYSLER CORP.
