Circuit Schematic

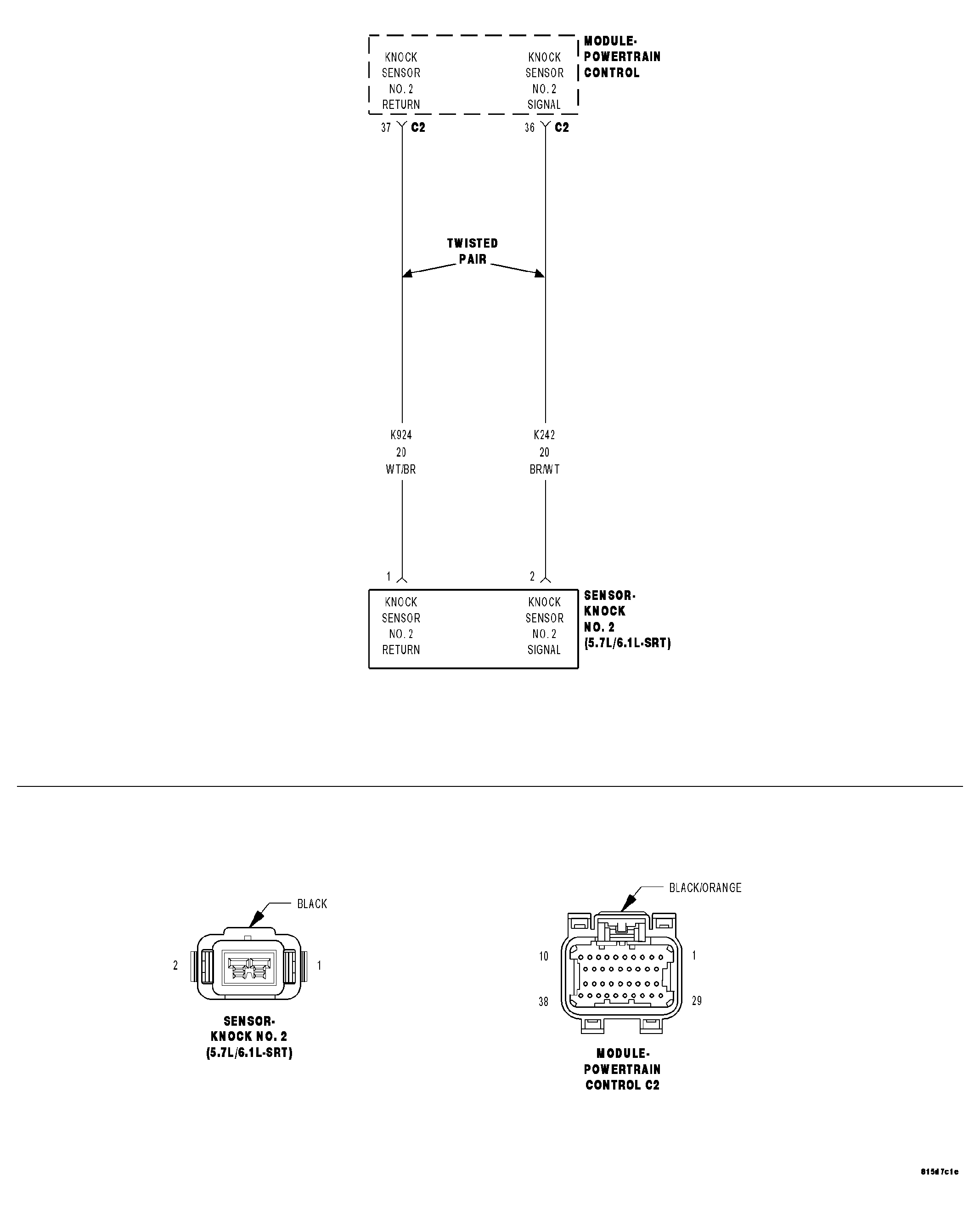

Fig 1: Knock Sensor 2 Circuit Schematic

GC0039834

Courtesy of DAIMLERCHRYSLER CORP.
