Circuit Schematic

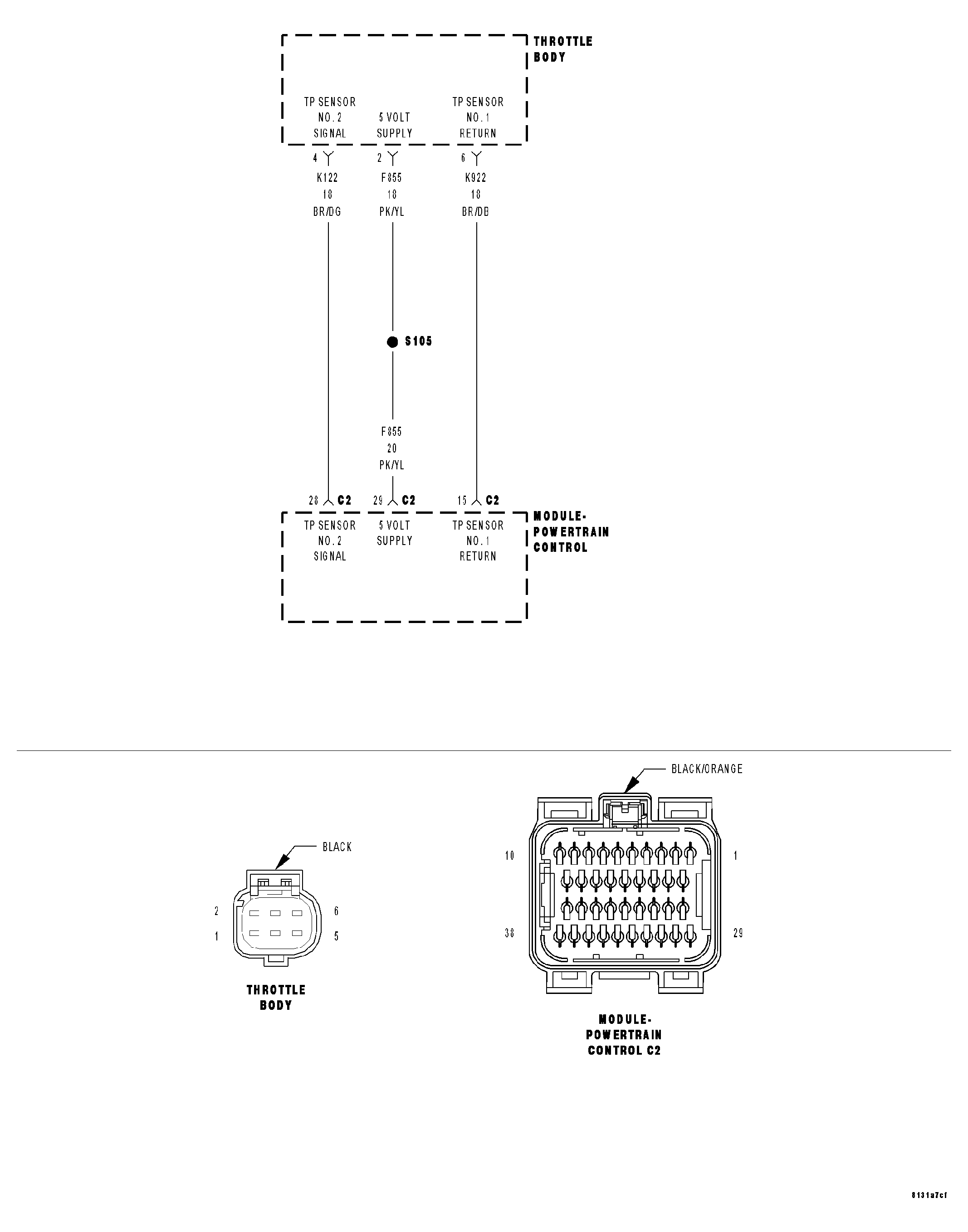

Fig 1: Throttle Position Sensor 2 Circuit Schematic

GC0014900

Courtesy of DAIMLERCHRYSLER CORP.
