Universal Transmitter: Description

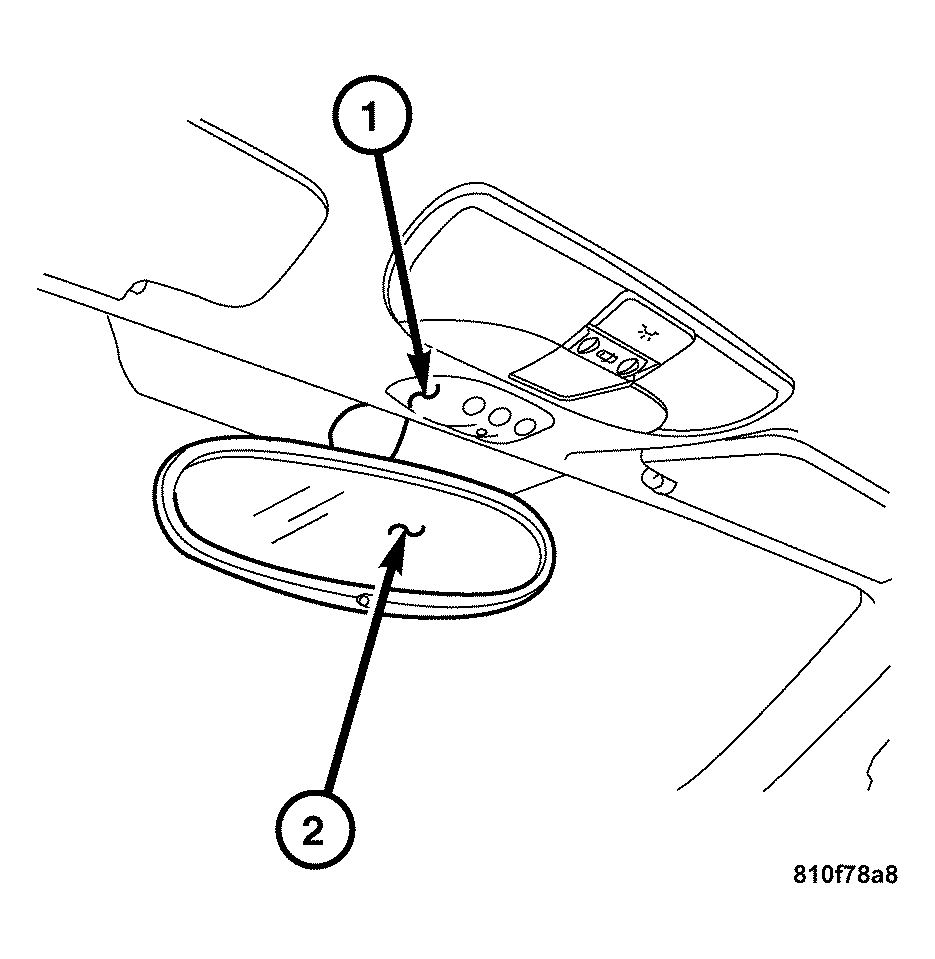

Fig 1: Identifying Universal Garage Door Opener/Tire Pressure Monitor Module & Rear View Mirror

Courtesy of DAIMLERCHRYSLER CORP.

The Universal Garage Door Opener/Tire Pressure Monitor Module (1) is located in the headliner near the inside rear view mirror (2). The Tire Pressure Monitoring (TPM) System utilizes a control module to monitor and operate the system. The control module also has a Universal Garage Door Opener integrated along with it.

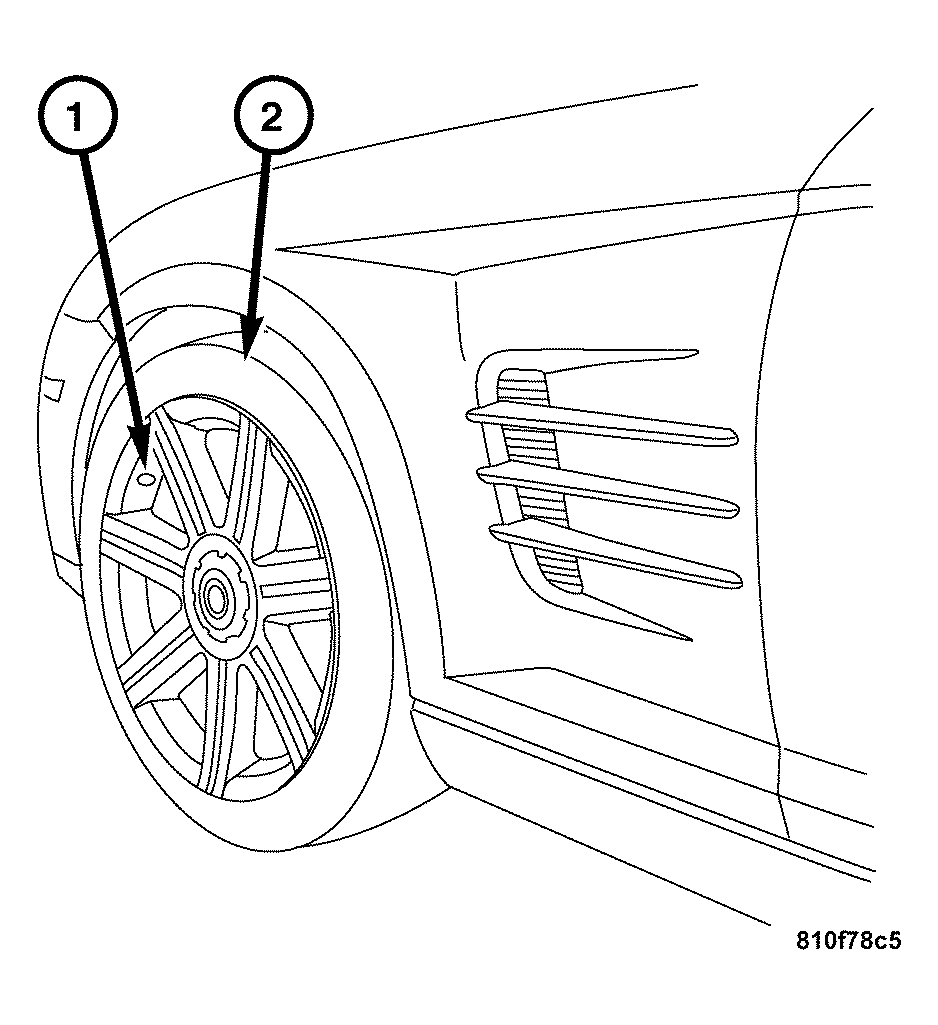

Fig 2: Locating Valve Stem In Tire

Courtesy of DAIMLERCHRYSLER CORP.

The Tire Pressure Monitoring System utilizes transmitters that are located in the valve stem (1) of each tire (2) to communicate the tire pressure condition to the module. If a tire has low air pressure, an indicator light on the Instrument Cluster is illuminated. The vehicle operator must check the tire pressure of each tire in order to determine which tire has a low pressure condition.
