Battery System: Tray: Removal: Notes

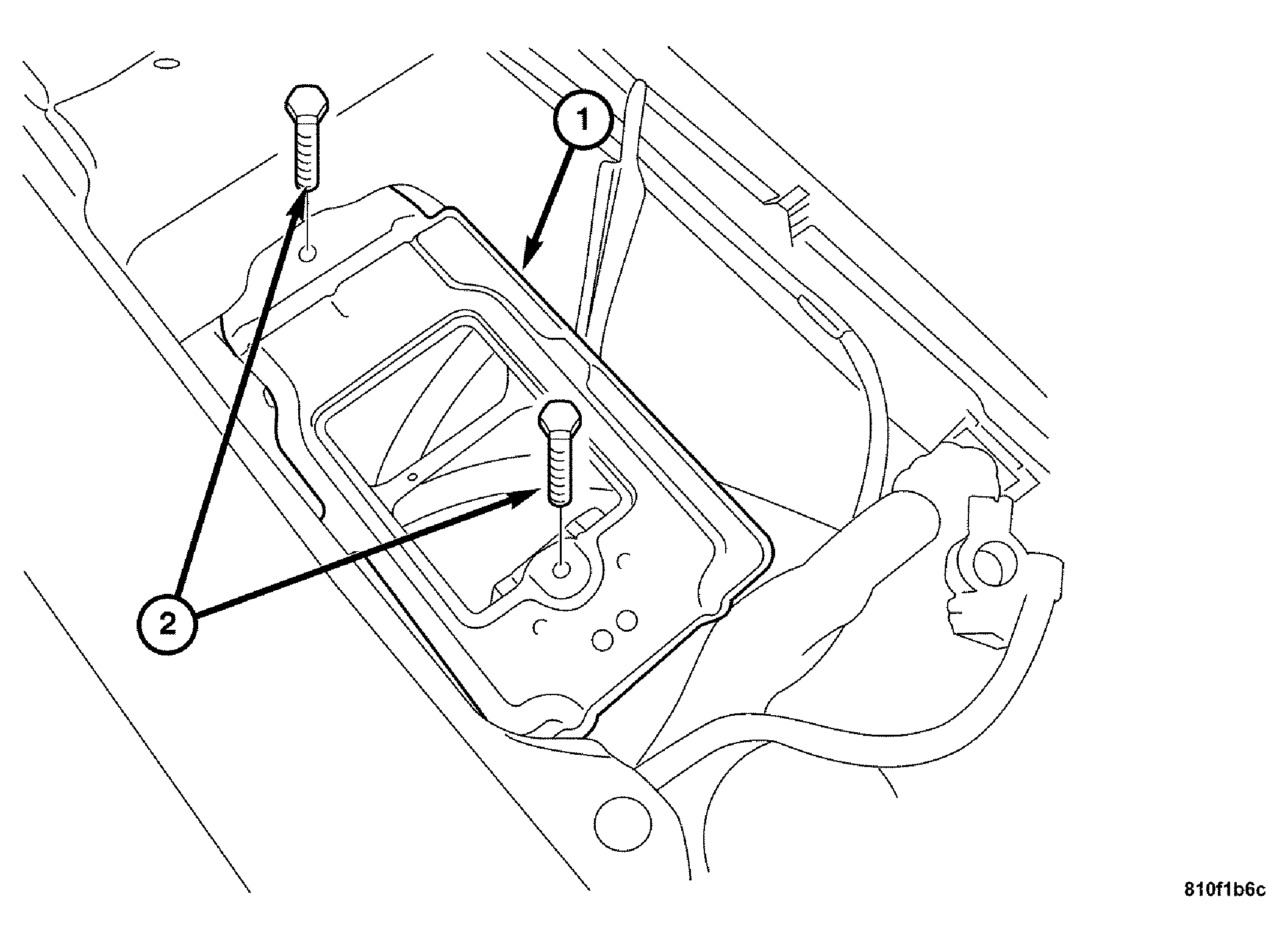

Fig 1: Removing Battery Tray - LHD

Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY TRAY

2 - BOLTS

1. Remove the battery. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
2. Remove the battery tray (1) retaining bolts (2).
3. Remove the battery tray (1).
