Fuel Tank Filler Tube Housing: Removal

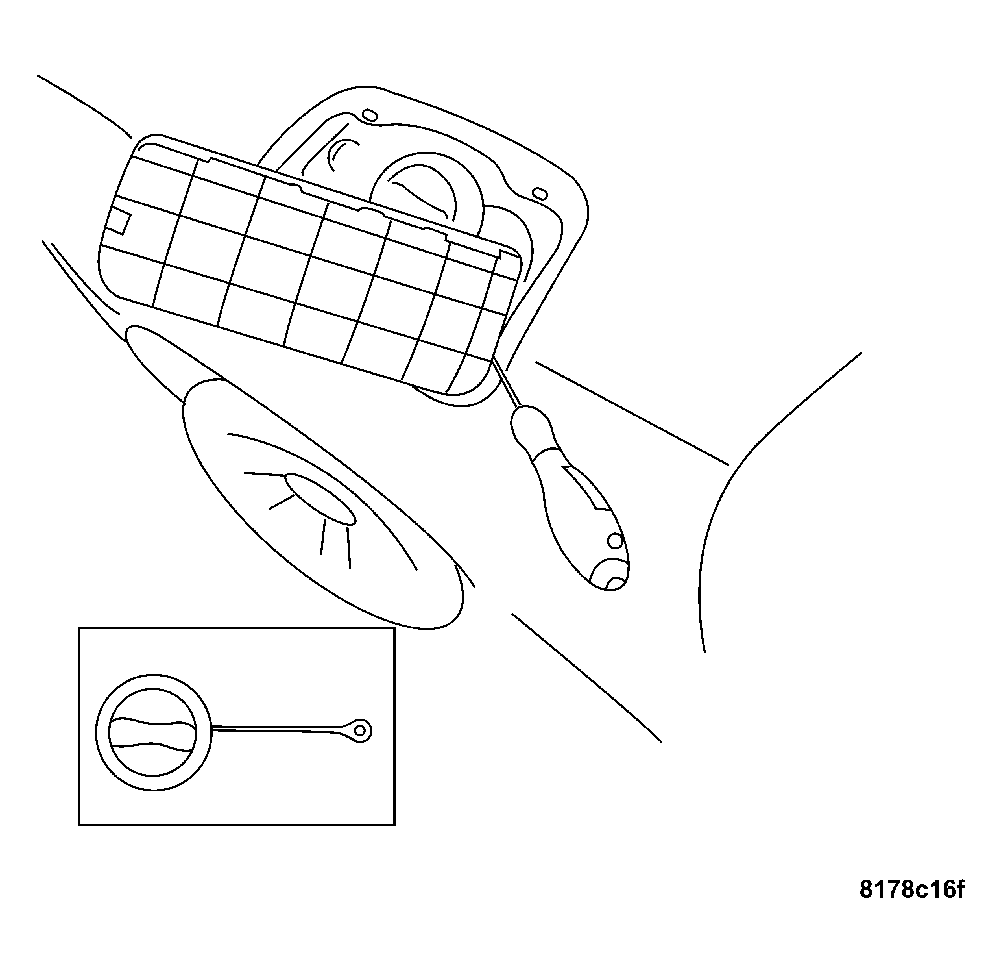

Fig 1: Removing Fuel Fill Door

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the fuel fill door cover from the fuel fill door arm by gently opening the retaining clip and simultaneously pulling the fuel fill door cover off of the fuel fill door arm.

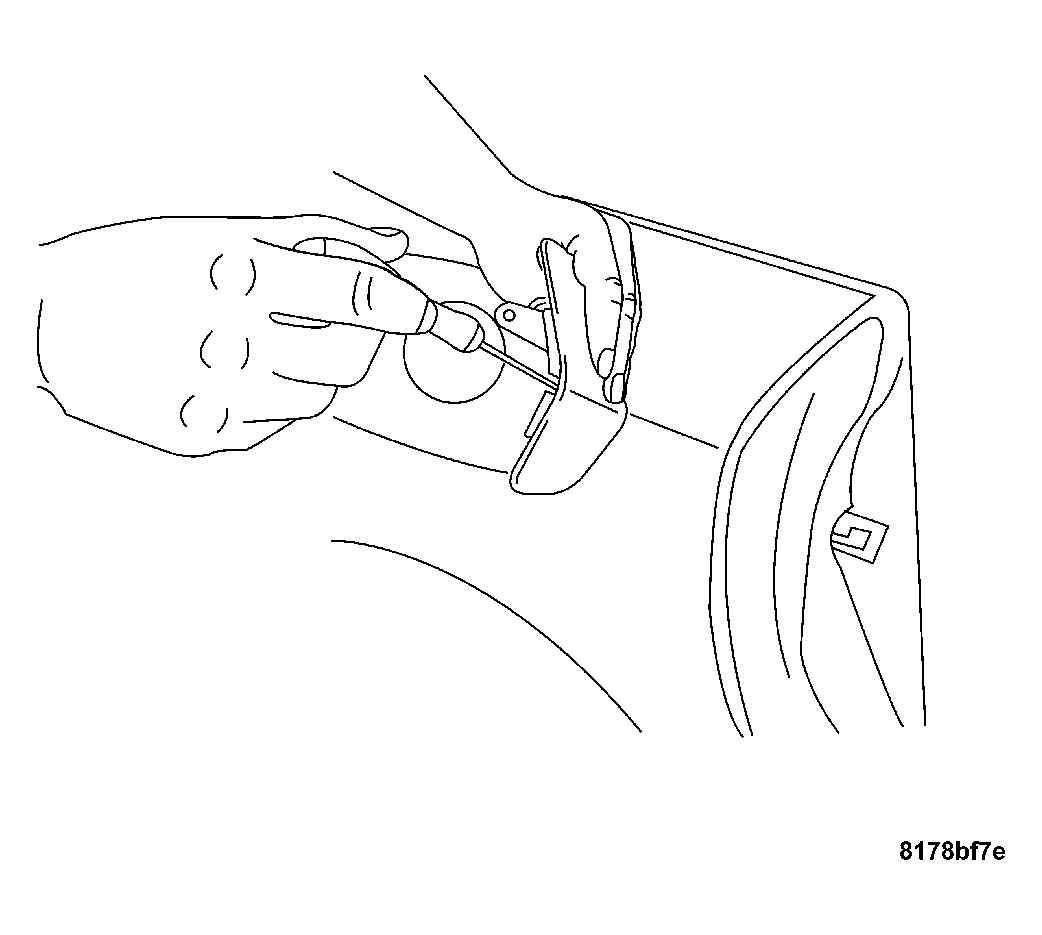

   Fig 2: Removing Fuel Filler Cap Band

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove the fuel filler cap band from the fuel fill door arm by pushing the pin of the spreadclip out using, a screw driver or similar tool. Remove the spreadclip from the inside of the fuel fill door arm.
3. Remove the fuel door lock actuator/latch assembly. (Refer to ELECTRICAL/POWER LOCKS/DOOR UNLOCK RELAY - REMOVAL)
   Fig 3: Loosening Clips

   Courtesy of DAIMLERCHRYSLER CORP.
4. Loosen the four fuel tank filler tube housing retaining clips.
   NOTE: It is necessary to pierce the housing to access the retaining clips and loosen them.
   Fig 4: Prying Housing

   Courtesy of DAIMLERCHRYSLER CORP.
5. Pry the fuel tank filler tube housing out using trim sticks.
   Fig 5: Removing/Installing Housing Over Neck

   Courtesy of DAIMLERCHRYSLER CORP.
6. Once the fuel tank filler tube housing is sticking out enough to grab with your hands, pull the fuel tank filler tube housing over the filler neck.
   Fig 6: Removing/Installing Hose

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove the hose from the fuel tank filler tube housing, keeping the other end visible from the outside of the car.
