EVAP Purge Solenoid: Installation

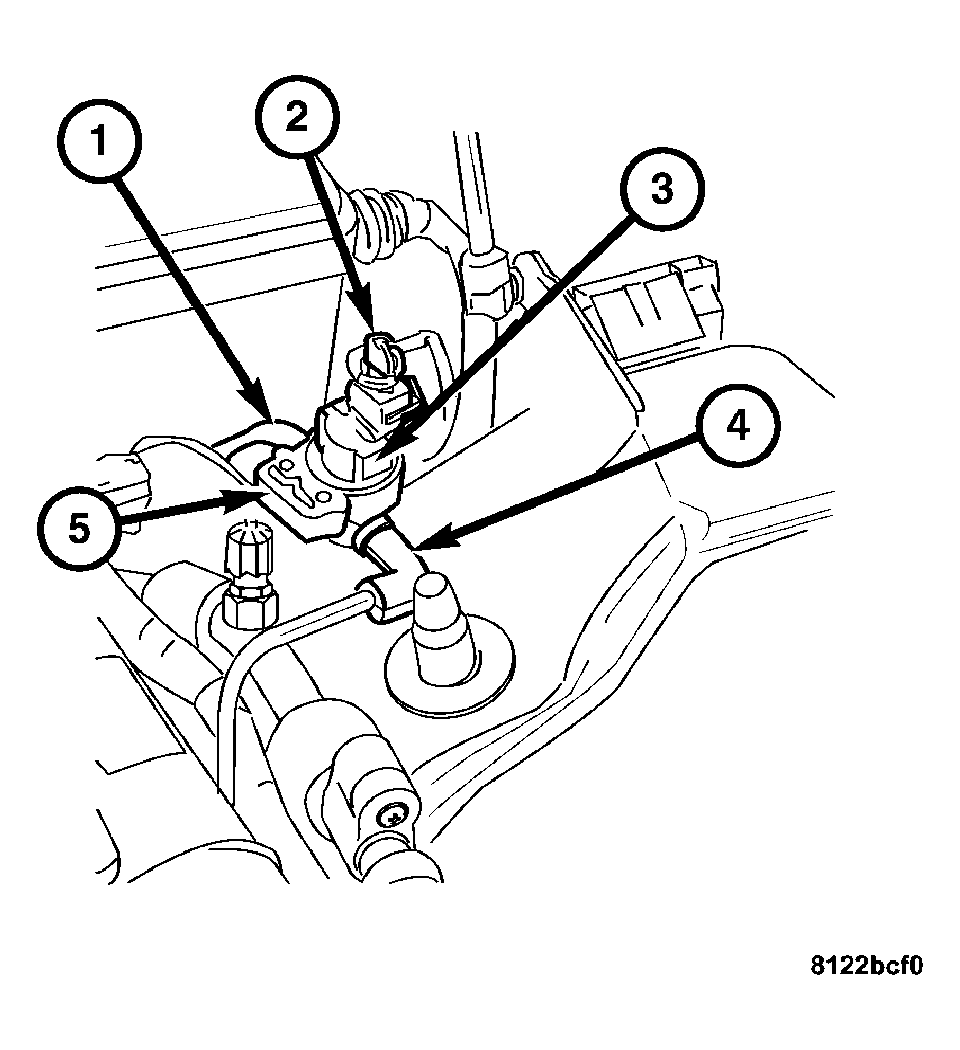

Fig 1: Locating Vapor Hoses, Solenoids & Bracket (3.2L)

Courtesy of DAIMLERCHRYSLER CORP.

1. Install solenoid (3) on bracket (5).
2. Connect vapor hoses (1 and 4) to solenoid (3).
3. Connect connector (2) to solenoid (3).

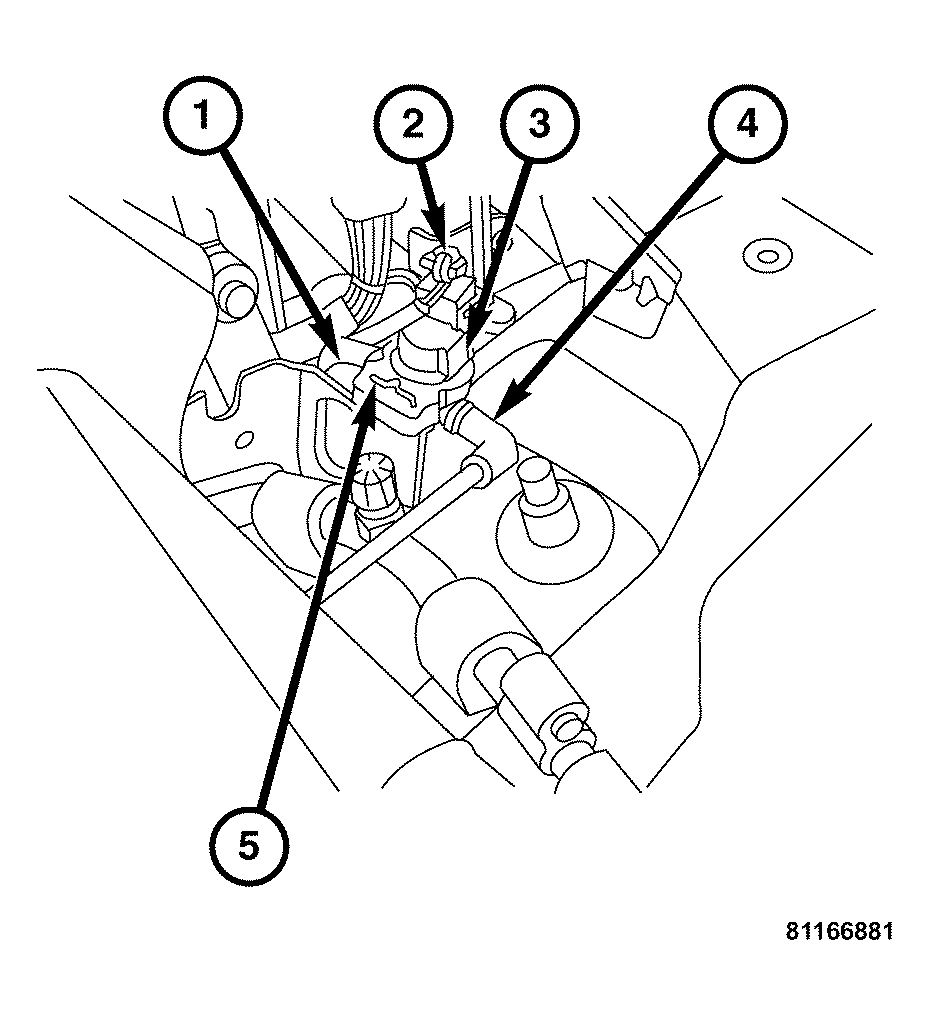

Fig 2: Locating Vapor Hoses, Solenoids & Bracket (3.2L SRT)
Courtesy of DAIMLERCHRYSLER CORP.
4. Install solenoid (3) on bracket (5).
5. Connect vapor hoses (1 and 4) to solenoid (3).
6. Connect connector (2) to solenoid (3).
