Radiator Fan: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

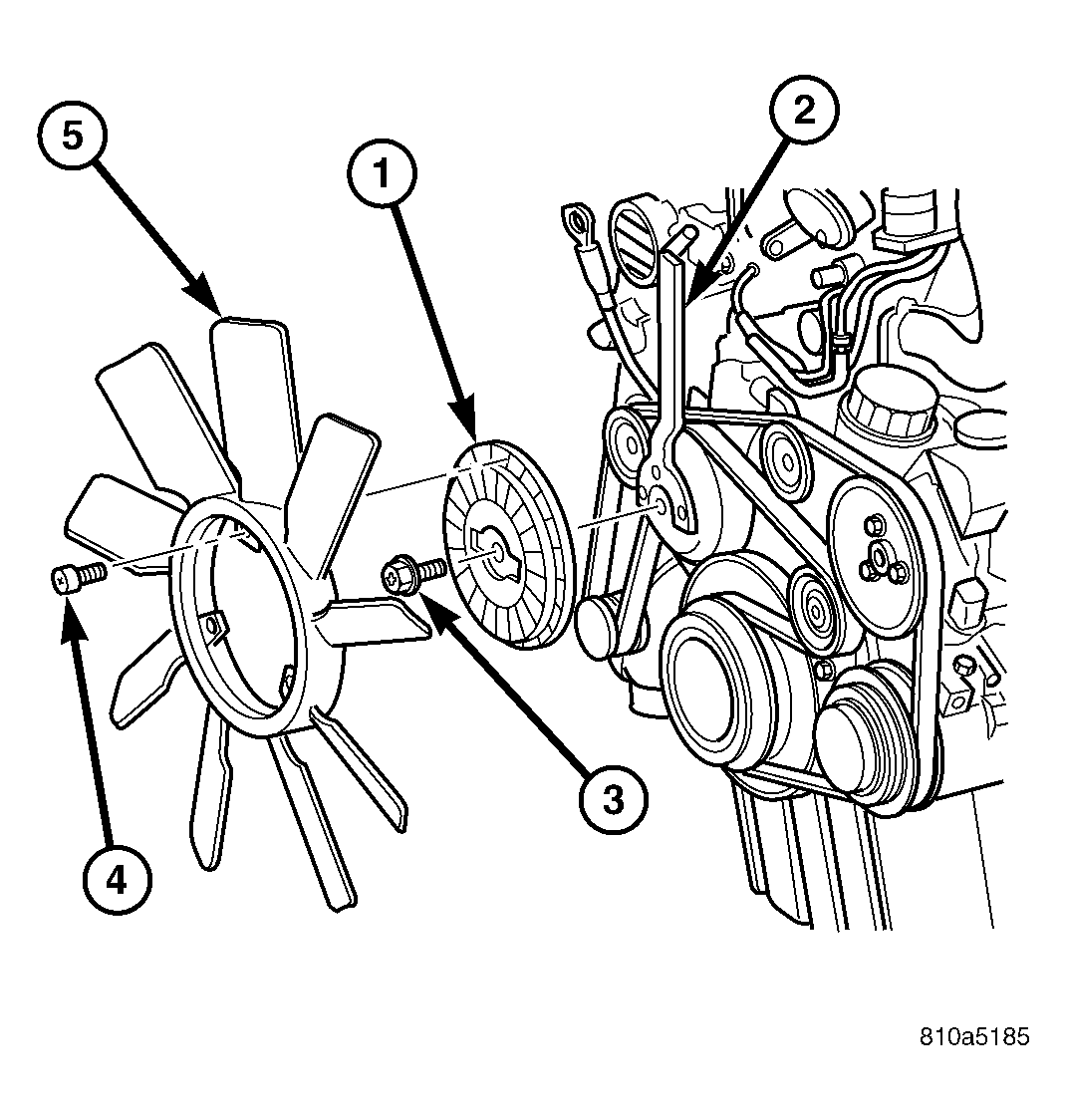

  1. Install fan blade to viscous clutch. Tighten bolts to 9 N.m (80 lbs. in.). See Figure.
  2. Install fan and clutch along with fan shroud in to engine bay area. See Figure.
  3. Install the center bolt of the viscous clutch. Tighten bolt to 45 N.m (33 lbs. ft.). See Figure
  4. Attach coolant line to lower radiator shroud.
  5. Properly align and clip the fan shroud into place.
  6. Connect negative battery cable.
