Oil Level/Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the lower oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .

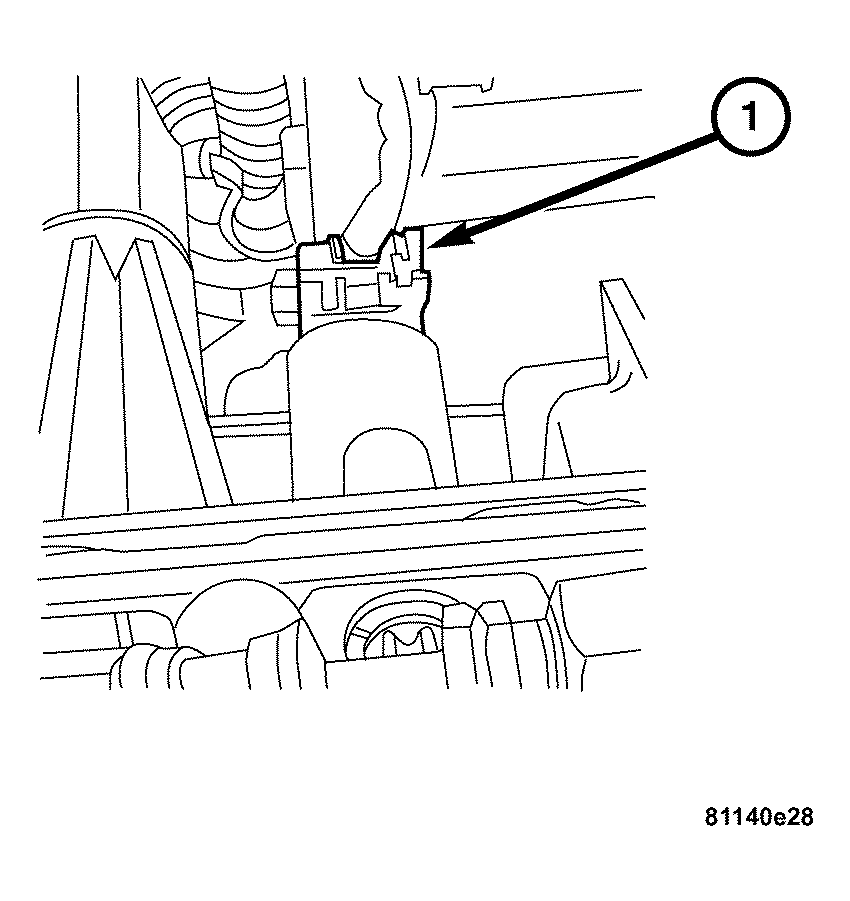

    Fig 1: Identifying Oil Level/Temperature Sensor Harness Connector
    GC0034710Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect the oil level/temperature sensor harness connector (1).

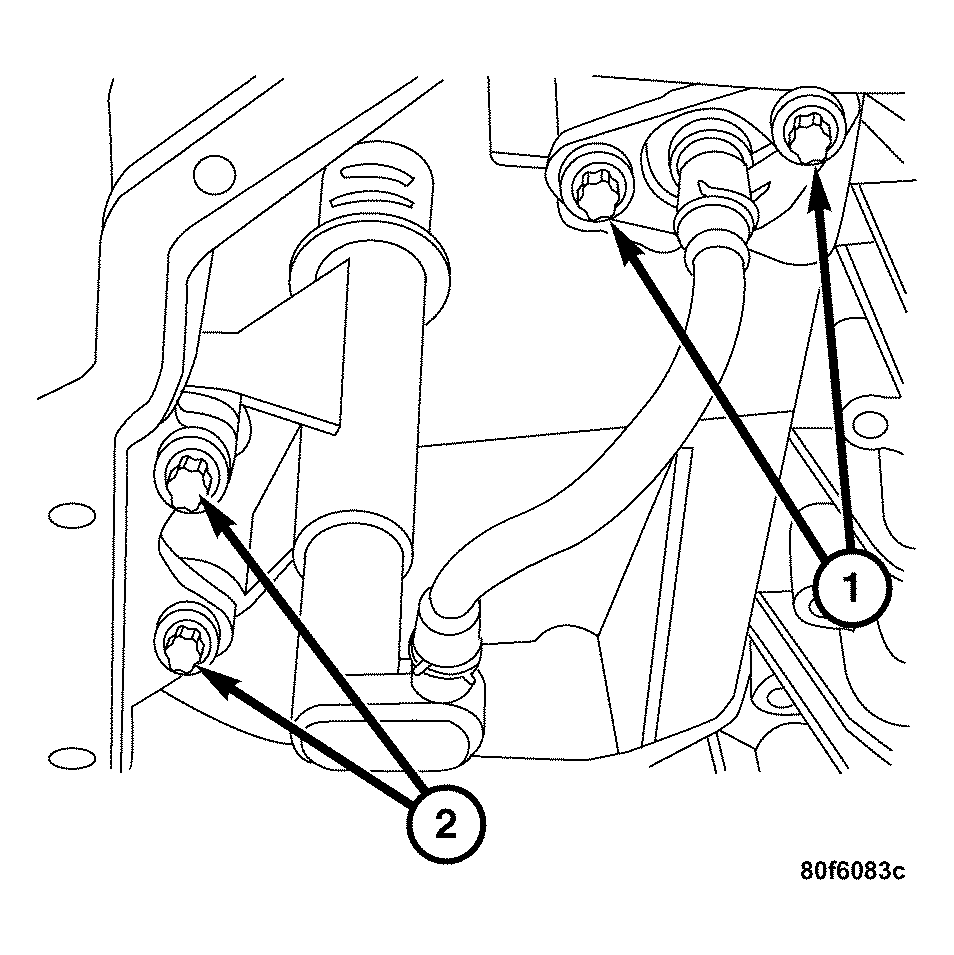

    Fig 2: Identifying Retainer Screws
    GC0034709Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the two oil level/temperature sensor screws (1).
  4. Remove the two harness retainer screws (2) and the oil level/temperature sensor.
