Charge Air Cooler Circulation Pump: Installation

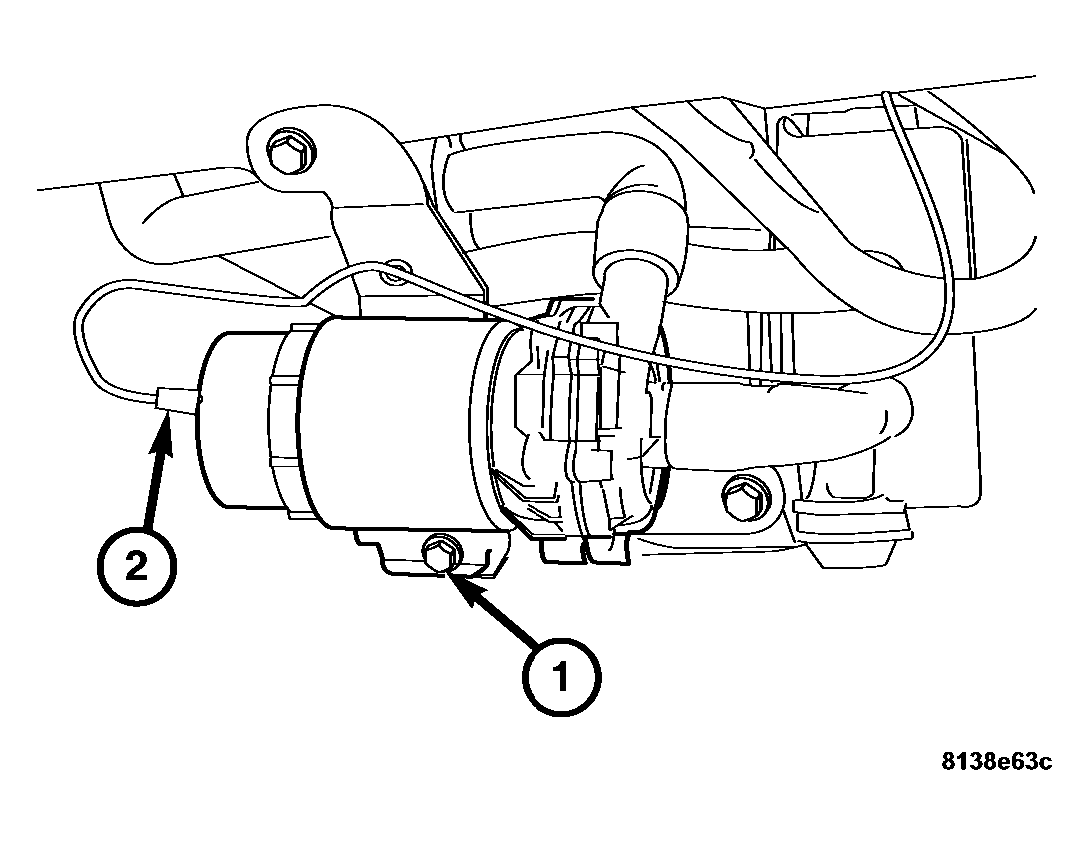

Fig 1: Identifying Charge Air Cooler Circulation Pump Mounting Bolt & Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the charge air cooler circulation pump to the mounting bracket.
2. Install the charge air cooler circulation pump mounting bolt (1). Tighten the mounting bolt to 20 N.m (15 ft. lbs.).
3. Reconnect the charge air cooler circulation pump harness connector (2).

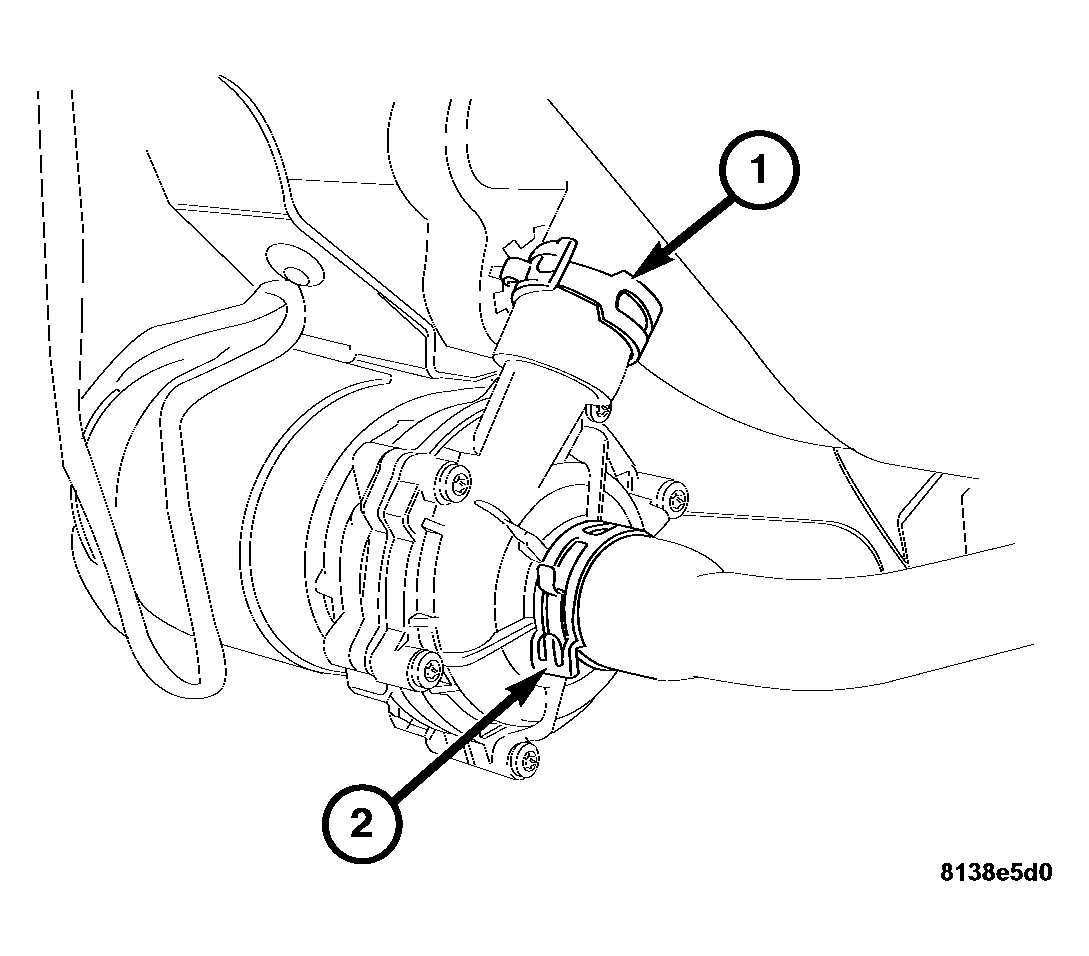

   Fig 2: Identifying Charge Air Cooler Circulation Pump Inlet & Outlet Hoses

   Courtesy of DAIMLERCHRYSLER CORP.
4. Reconnect the charge air cooler circulation pump inlet hose (2).
5. Reconnect the charge air cooler circulation pump outlet hose (1).
6. Refill the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
7. Start the engine and check for coolant leaks.
8. Install the right side inner fender lining.
9. Recheck the coolant level.
