Clutch Pedal: Installation

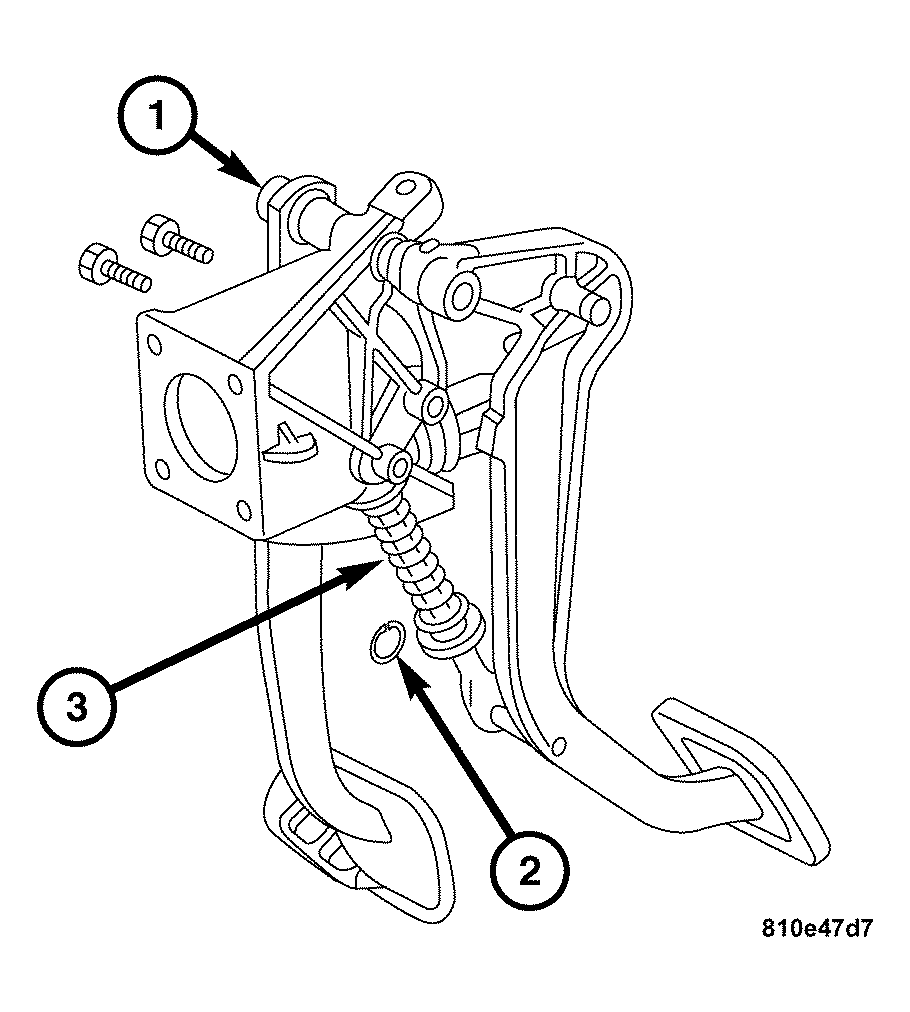

Fig 1: Locating Pivot, Circlip & Return Spring

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the clutch pedal on the pivot (1).
2. Install the return spring (3) and the circlip (2).
   Fig 2: Disconnecting/Connecting Master Cylinder Pressure Line At Master Cylinder

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install the clutch master cylinder fluid pressure line (1) (Refer to CLUTCH/MASTER CYLINDER - INSTALLATION) .
   Fig 3: Identifying Cluster Cover & Lower Panel

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the driver side upper instrument panel (1) (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
5. Install the driver side lower instrument panel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
