Release Bearing/Slave Cylinder: Installation

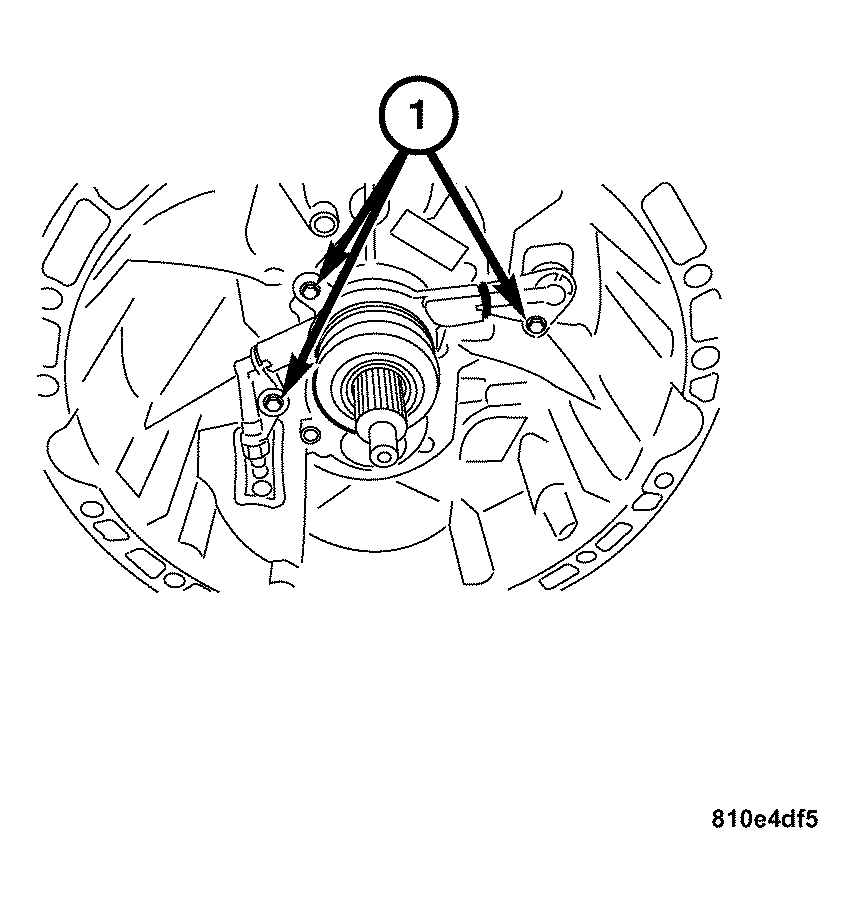

Fig 1: Locating Clutch Slave Cylinder/Release Bearing Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the slave cylinder/release bearing in the bell housing.
2. Install the slave cylinder/release bearing bolts (1). Tighten the bolts to 10 N.m (89 in. lbs.).
3. Install the transmission (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
4. Bleed the hydraulic clutch system (Refer to CLUTCH - STANDARD PROCEDURE) .
