Thermal Guard: Description

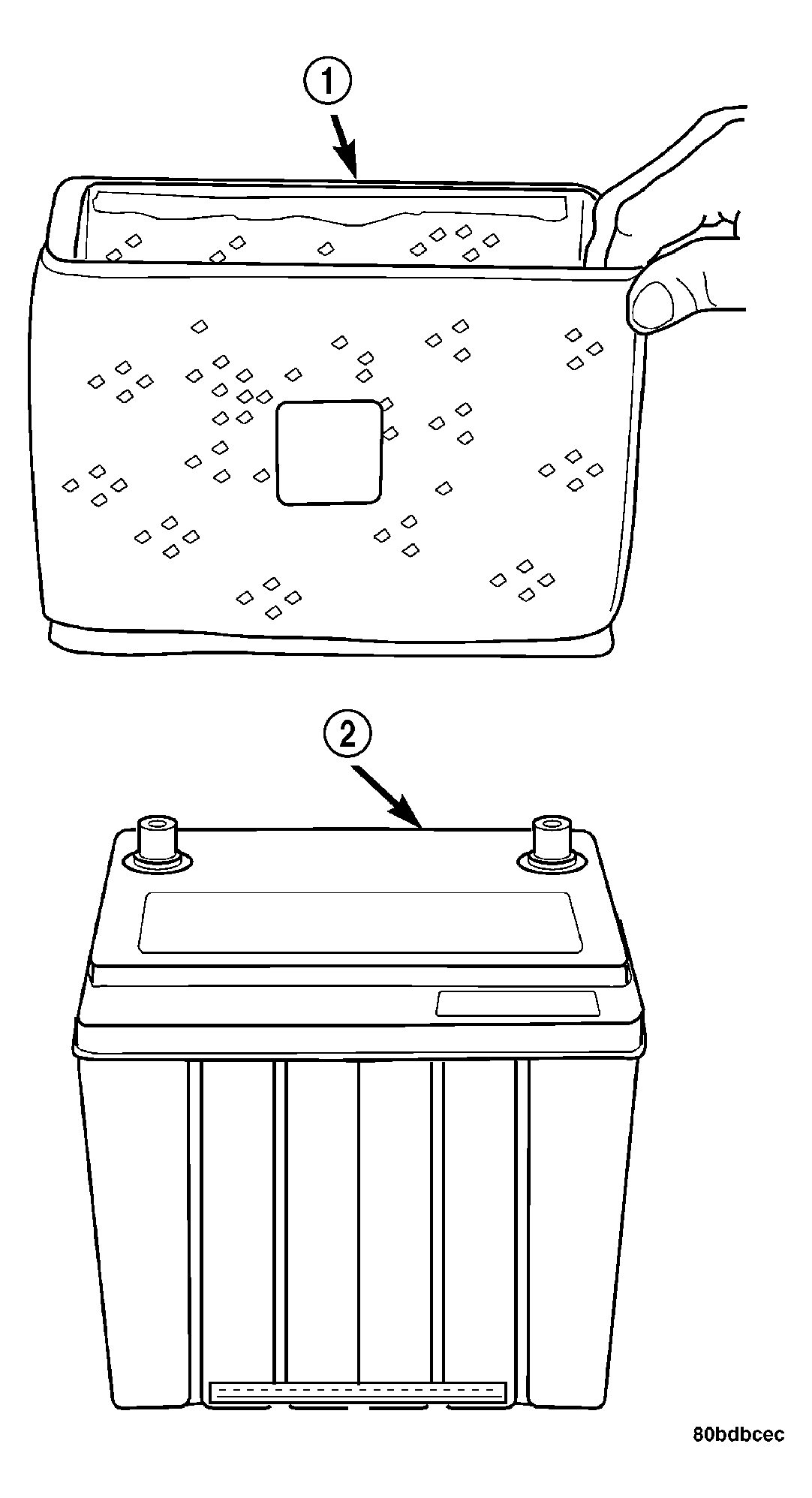

Fig 1: Battery Thermal Guard

Courtesy of DAIMLERCHRYSLER CORP.

On gasoline engine equipped vehicles, a flexible thermal guard wraps around the battery case (2) to enclose the sides of the battery. The thermal guard (1) consists of a plastic cloth outer skin with a polyester based insulator fiber.
