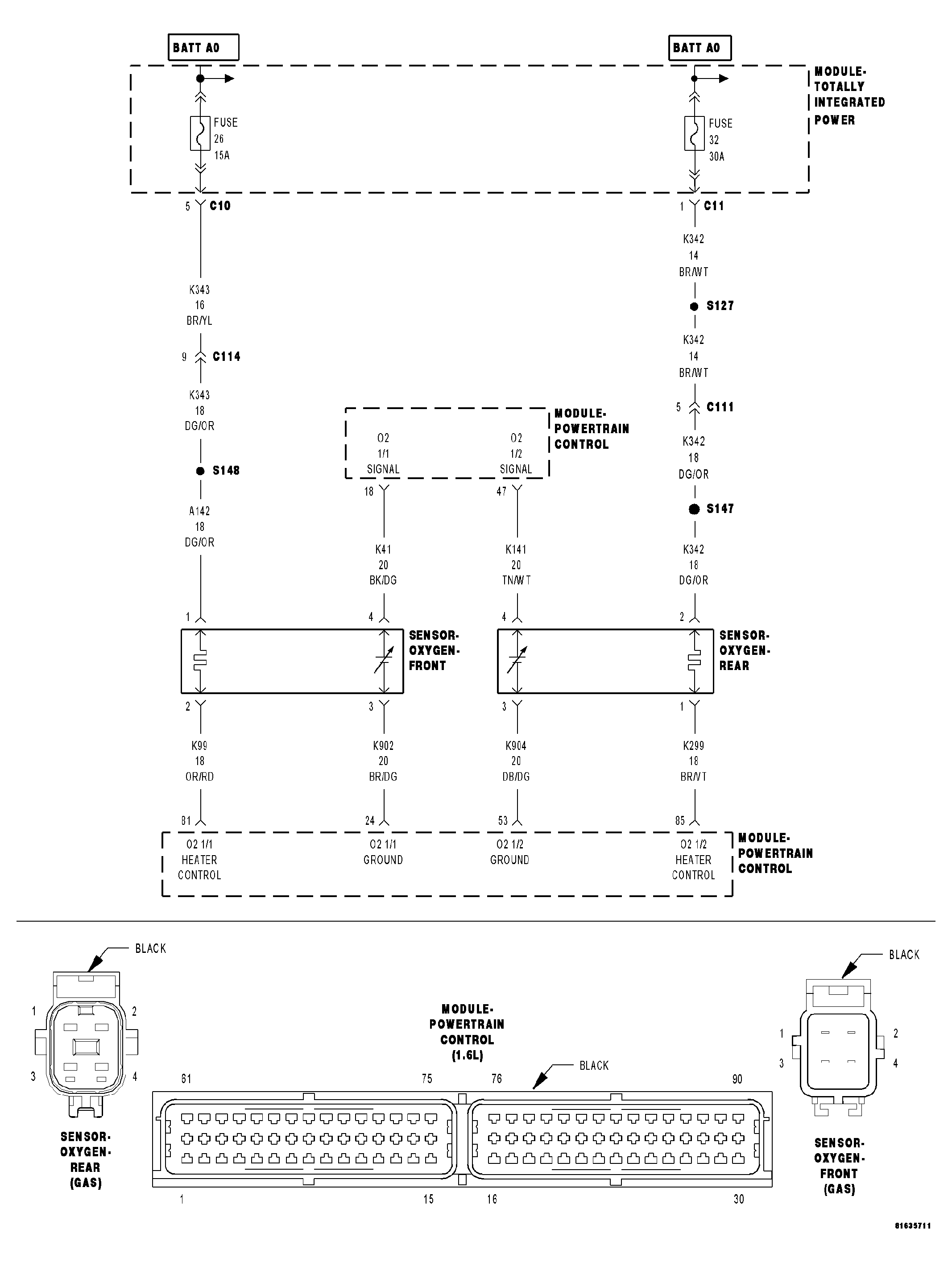

Home › Chrysler › 2006 › PT Cruiser Base, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › System › 1.6L Engine - DTCS P0132 To P0302 › Diagnosis And Testing › P0137-1/2 O2 Sensor Shorted To Ground › Circuit Schematic
