Belt TENSIONER System

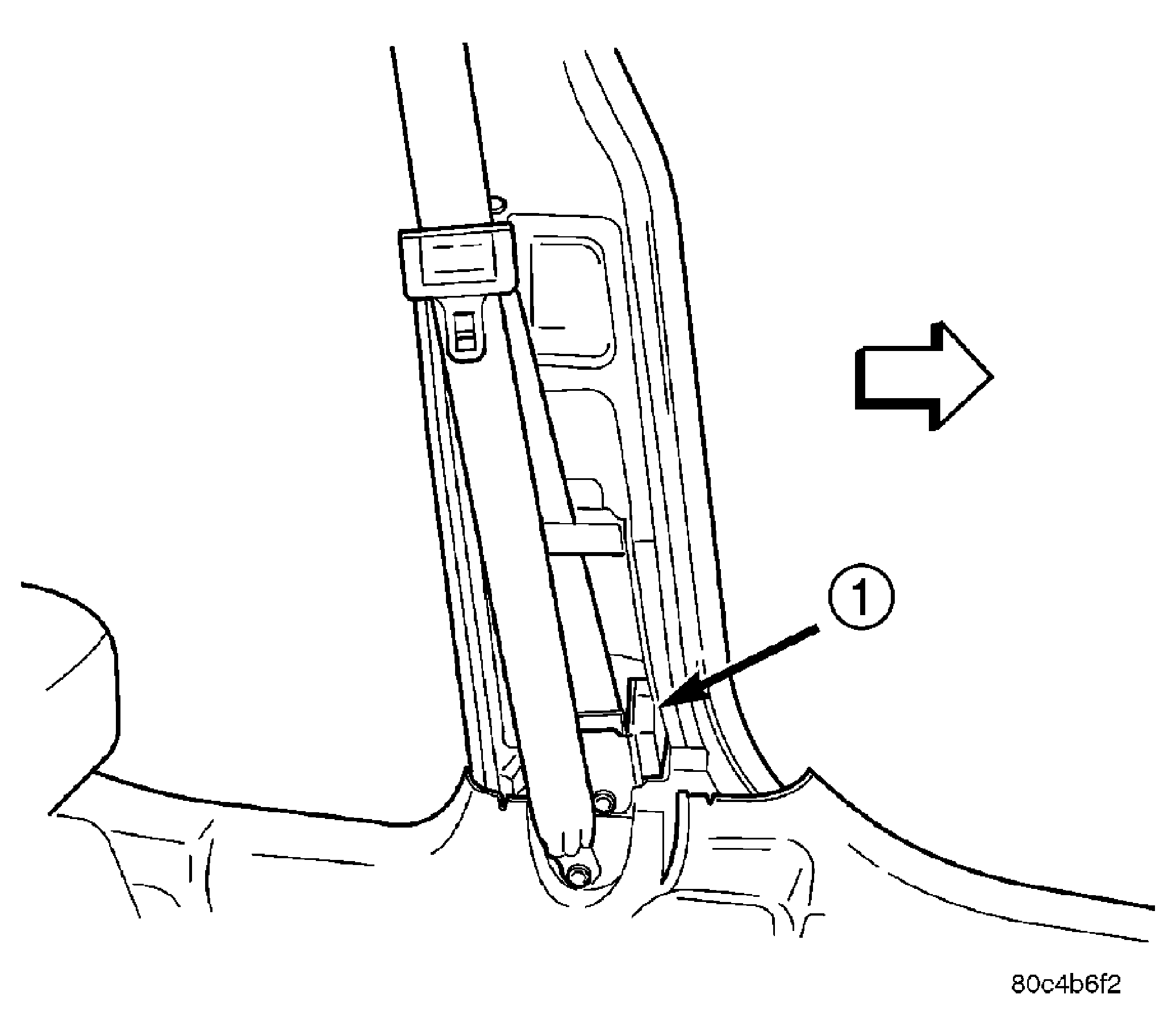

Fig 1: Seat Belt Tensioner Location - Typical
GC0022988Courtesy of DAIMLERCHRYSLER CORP.

The seat belt system incorporates Tensioner Modules. They are integral to the seat belt retractors (1) and cannot be serviced. If found defective they must be replaced.
