Pacifica Limited, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C1 - Black/Black 38 Way
Powertrain Control Module C1 - Black/Black 38 Way

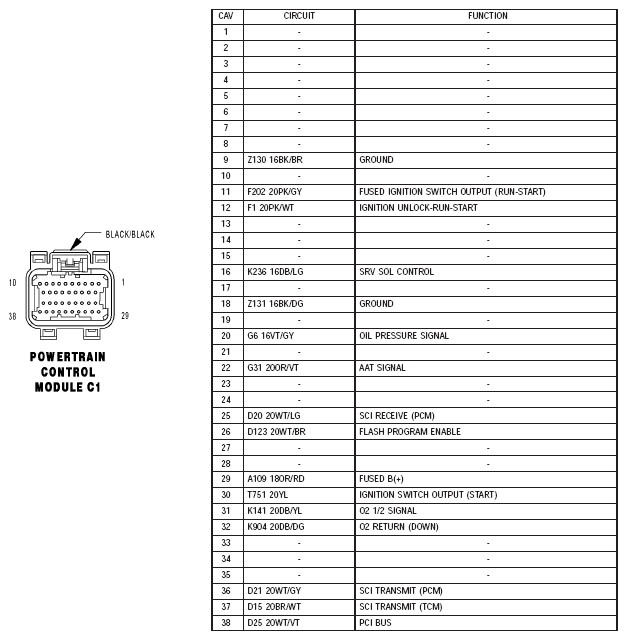

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C1
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
