Knee Blocker Airbag: Installation

  1. Place the knee blocker airbag into position in the instrument panel opening.

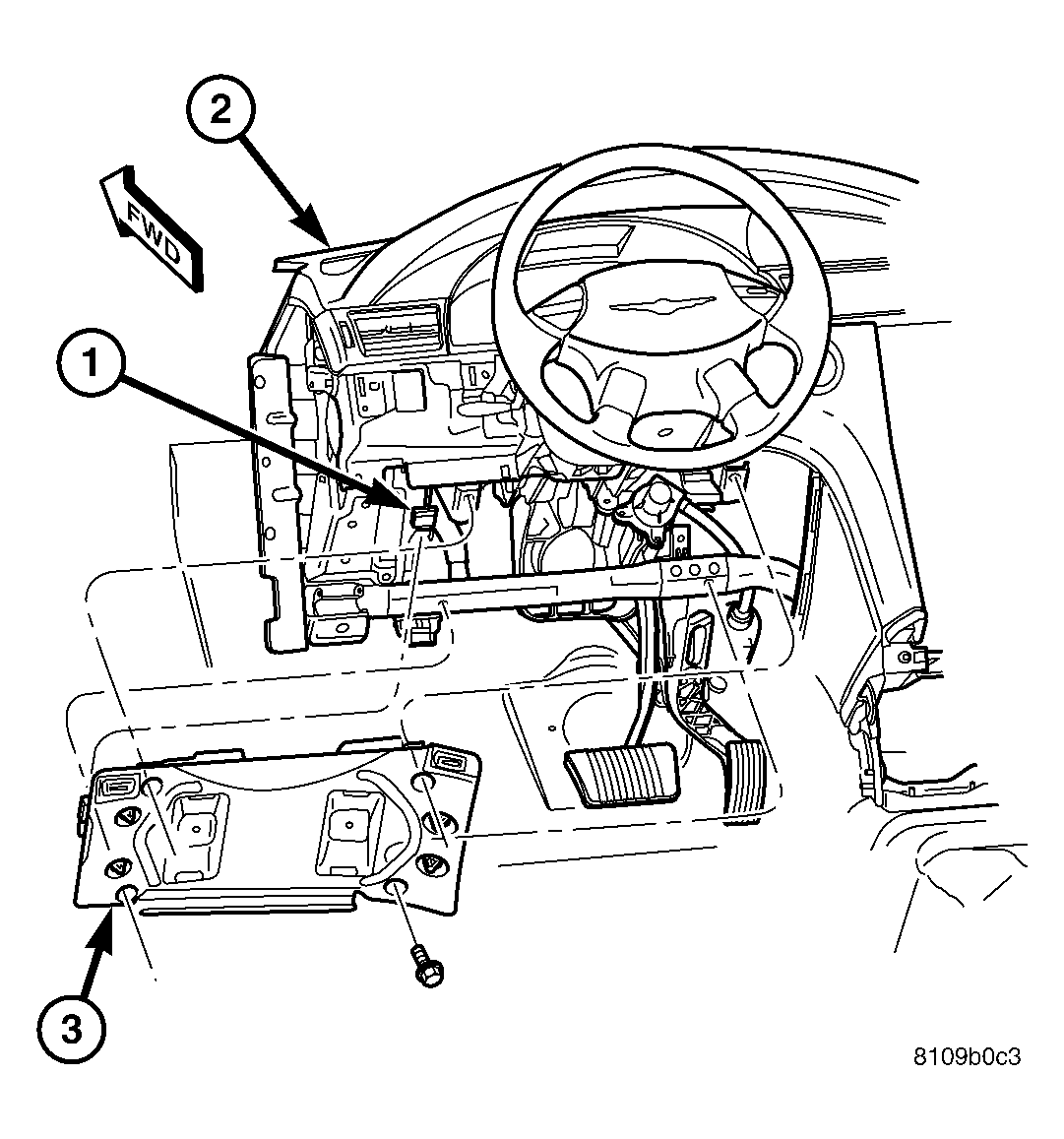

  2. Connect the one electrical connector. See Figure.
  3. Install the four knee blocker airbag retaining bolts into the airbag. See Figure.

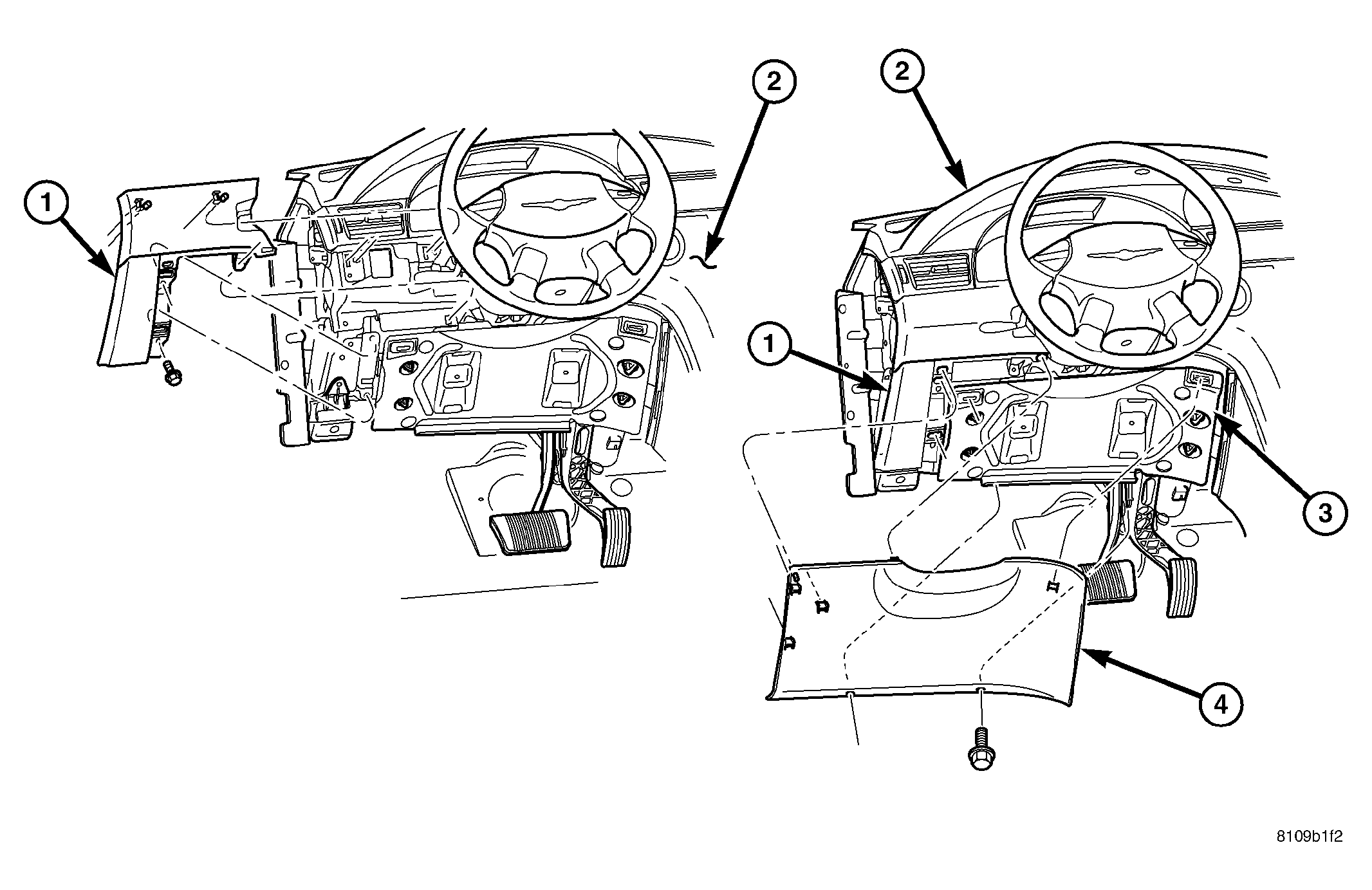

  4. Position the steering column opening cover over retaining slots and firmly snap into place. Install the two retaining screws. See Figure.
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
  5. Verify vehicle and system operation.
  6. Close hood.
