Vacuum Reservoir: Installation

  1. Connect vacuum hose to reservoir by inserting nail head pegs on reservoir into the keyhole slots in the frame rail and slide down to lock it into place.

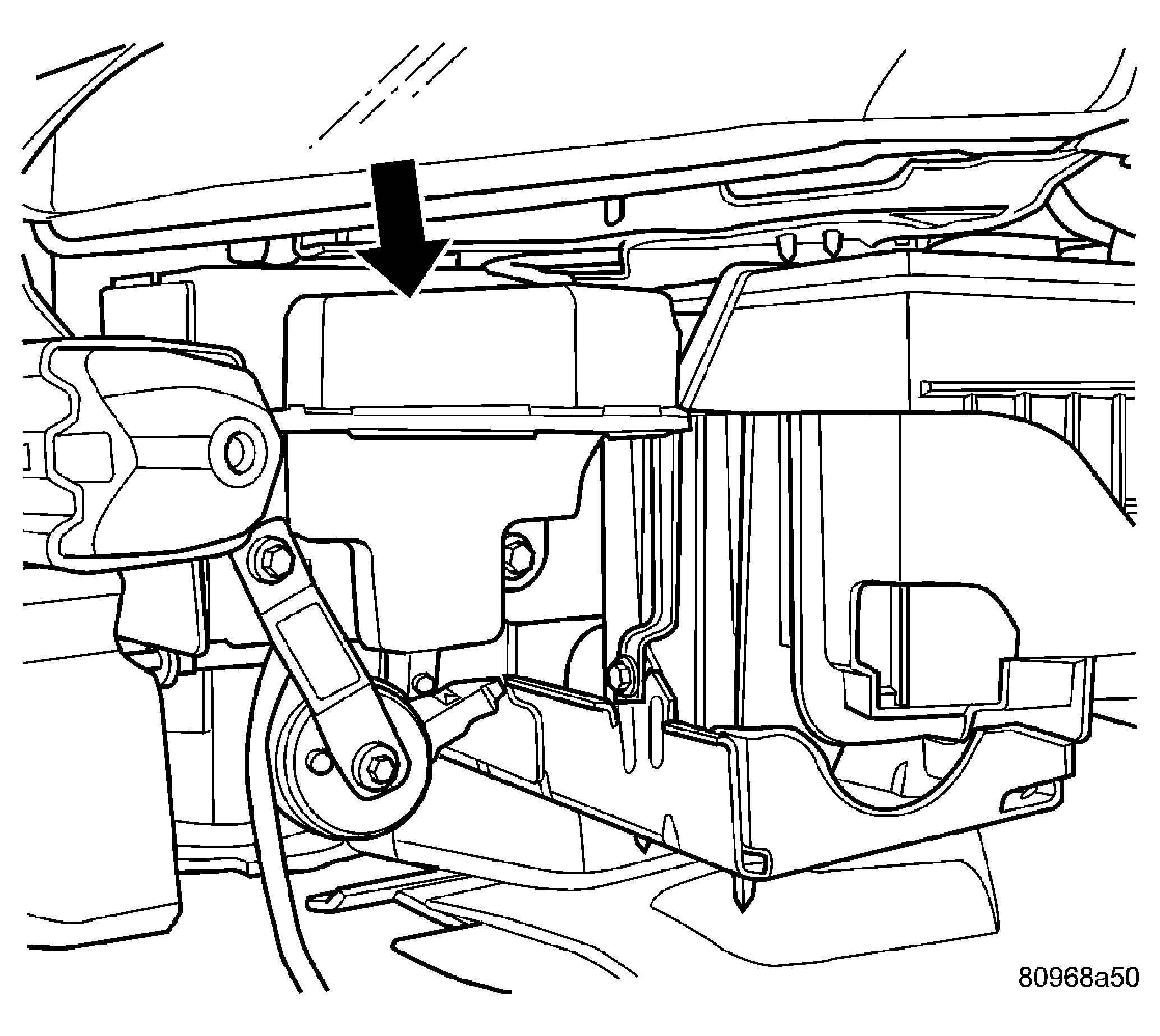

  2. Install the vacuum reservoir. See Figure.
  3. Install bolt through to reservoir to frame rail.
  4. Install the front fascia, refer to FRONT FASCIA for more information.
