Audio System: Radio: Removal

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel trim.
3. Remove radio mounting screws.

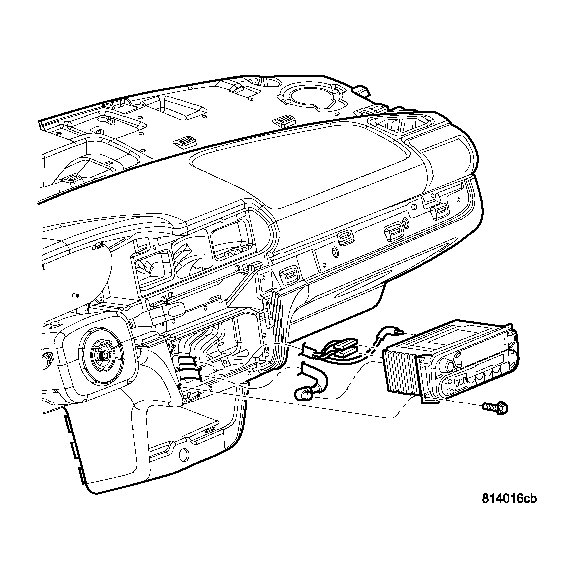

   Fig 1: RADIO

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove radio. See Fig 1.
5. Disconnect wire harness connectors.
   CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
6. Disconnect the antenna cable by pulling the locking antenna connector away from the radio. See Fig 2.

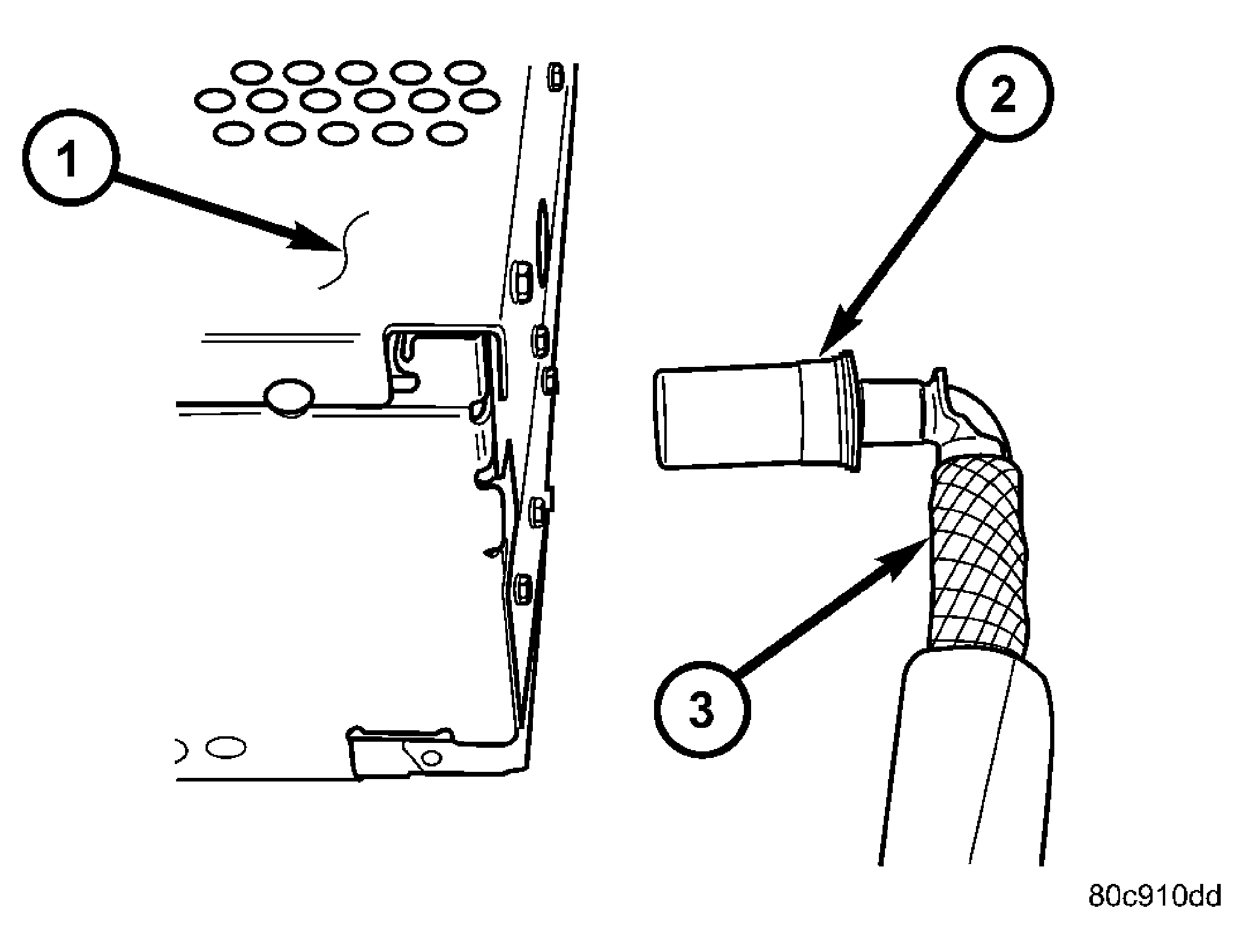

Fig 2: Antenna To Radio

Courtesy of DAIMLERCHRYSLER CORP.

1 - RADIO

2 - LOCKING ANTENNA CONNECTOR

3 - INSTRUMENT PANEL ANTENNA CABLE
