Compass/Mini-Trip Computer: Removal

Disconnect and isolate the battery negative remote cable.
Remove the Instrument Cluster Bezel from the vehicle. (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) .

With the cluster bezel removed, remove the two screws attaching the Compass Mini-Trip Computer (Traveler) Module to the cluster bezel. See Fig 1.

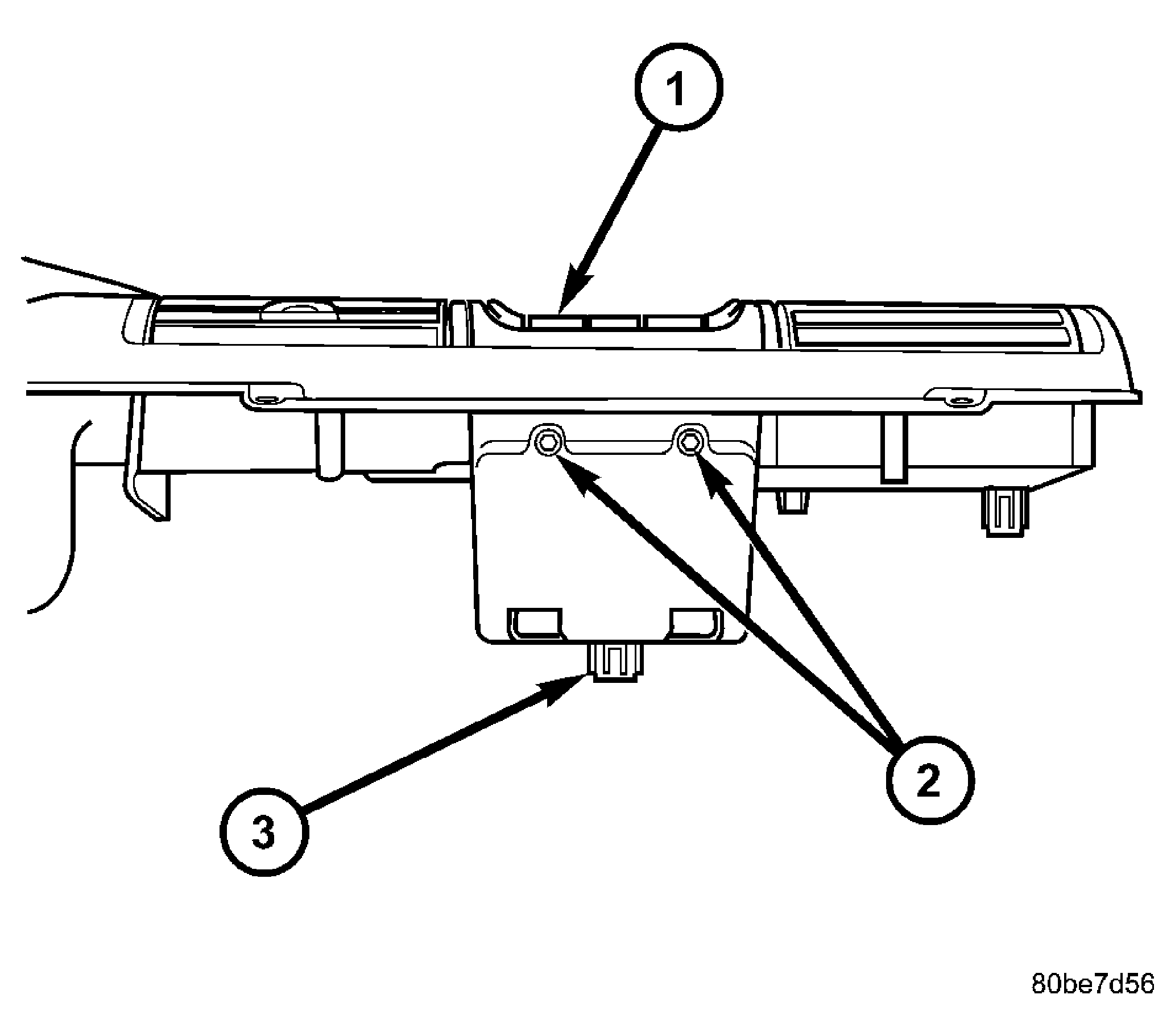

Fig 1: Compass/Mini-Trip Computer Retaining Screws

Courtesy of DAIMLERCHRYSLER CORP.

1 - COMPASS MINI-TRIP COMPUTER (TRAVELER)

2 - RETAINING SCREWS

3 - RETAINING CLIP

Unsnap the retaining clip and remove Compass Mini-Trip Computer (Traveler) from the cluster bezel. See Fig 1.
