Multi-Function Switch C1 - Natural 10 Way

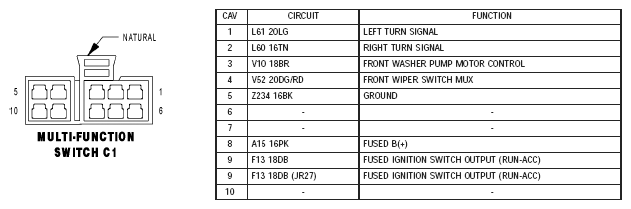

Fig 1: Identifying Connector Pinouts - Multi-Function Switch C1 - Natural 10 Way
G04762727
