Compass/Mini Trip Computer - Schematic Diagram

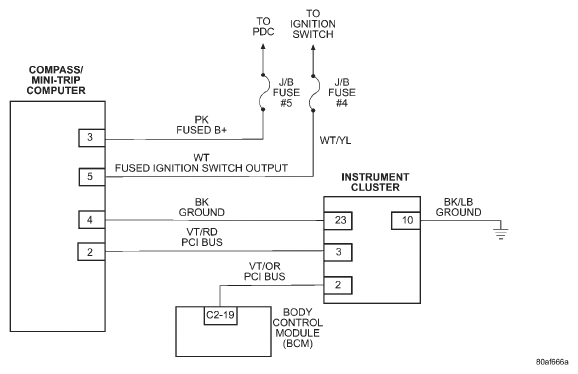

Fig 1: Compass/Mini Trip Computer - Schematic Diagram
G04762794
