DECKLID Latch Striker: Removal

1. Release decklid latch and open decklid.
2. Mark outline of decklid latch striker on rear closure panel to aid in installation.
3. Remove bolts attaching decklid latch striker to rear closure panel. See Fig 1.
4. Remove striker from vehicle.

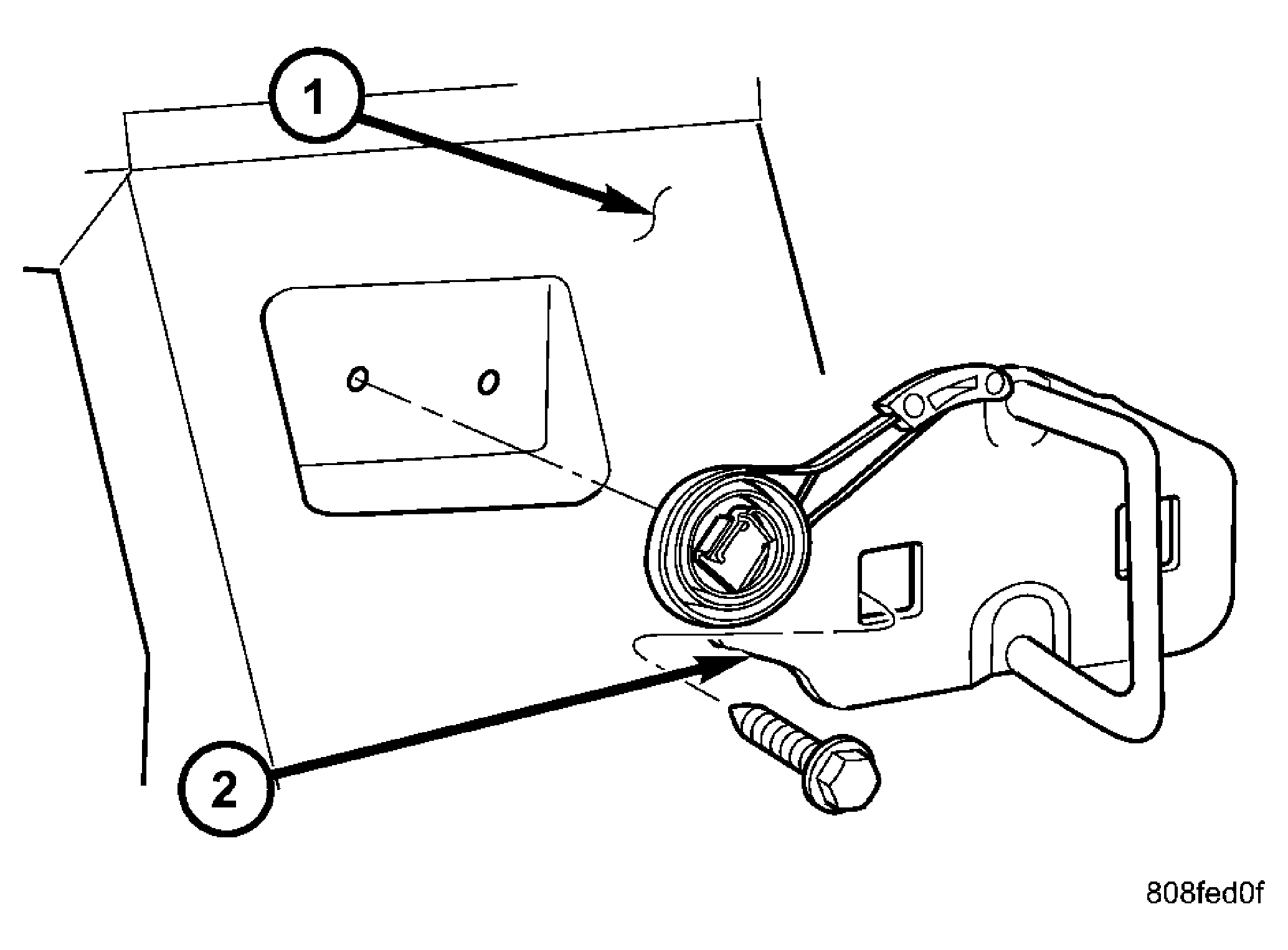

Fig 1: Decklid Latch Striker

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR CLOSURE PANEL

2 - TRUNK LATCH STRIKER
