A-Pillar Trim: Removal: Notes

Remove the front door opening weatherstrip along the A-pillar. (Refer to BODY/WEATHERSTRIP/SEALS/DOOR OPENING WEATHERSTRIP - REMOVAL)
Disengage clips attaching A-pillar trim to A-pillar. See Fig 1.
Remove A-pillar trim from vehicle.

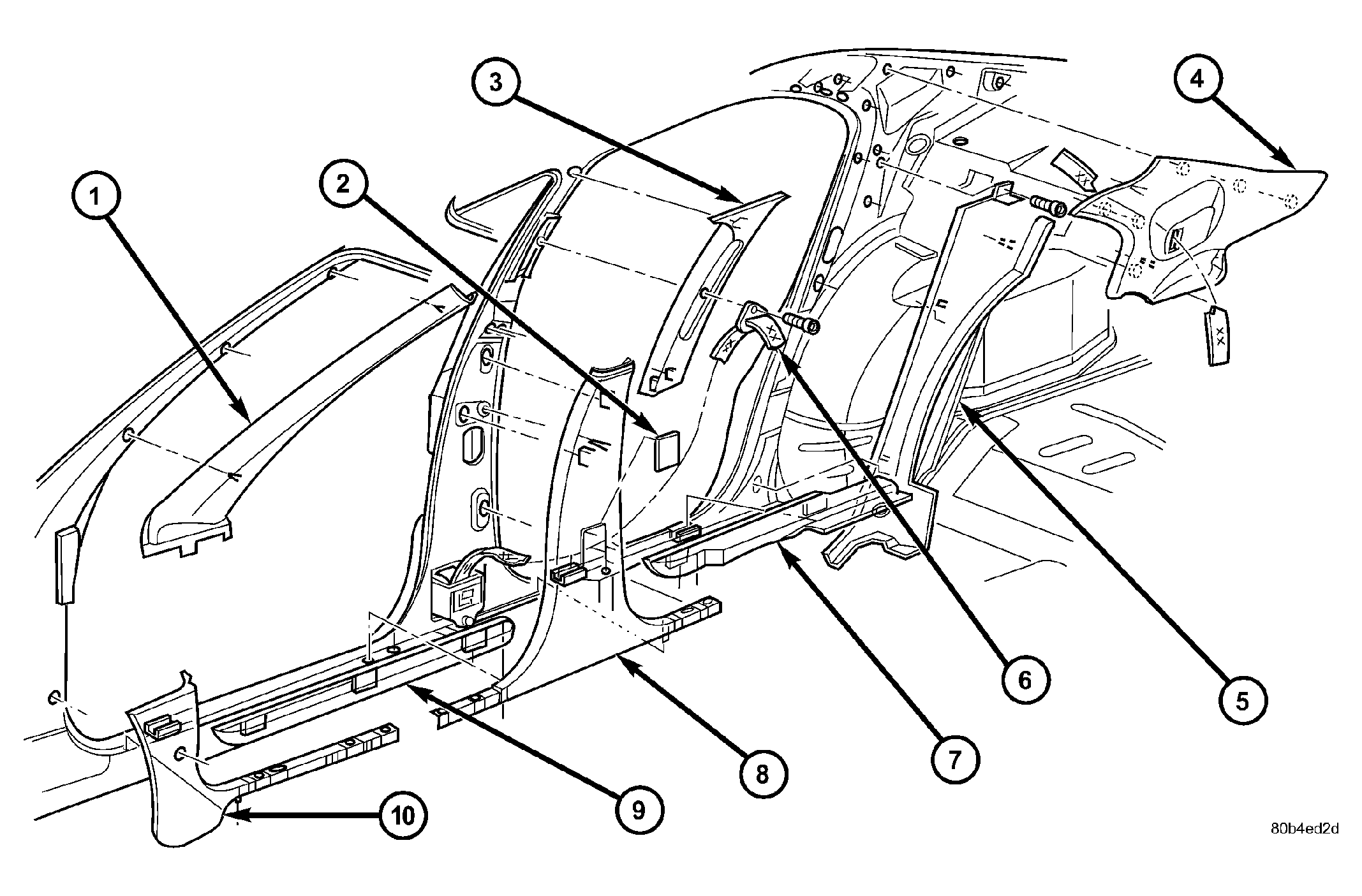

Fig 1: Interior Trim Panels

Courtesy of DAIMLERCHRYSLER CORP.

1 - A-PILLAR TRIM

2 - BEZEL - B-PILLAR LOWER

3 - UPPER B-PILLAR TRIM

4 - UPPER QUARTER TRIM

5 - LOWER QUARTER TRIM

6 - SEAT BELT

7 - SCUFF PLATE

8 - LOWER B-PILLAR TRIM

9 - SCUFF PLATE

10 - COWL TRIM
