Windshield Header Damper: Removal

1. Remove center header trim panel (Refer to BODY/INTERIOR/INTERIOR TRIM PANELS - REMOVAL) .
2. Remove nuts attaching damper. See Fig 1.
3. Remove damper from vehicle.

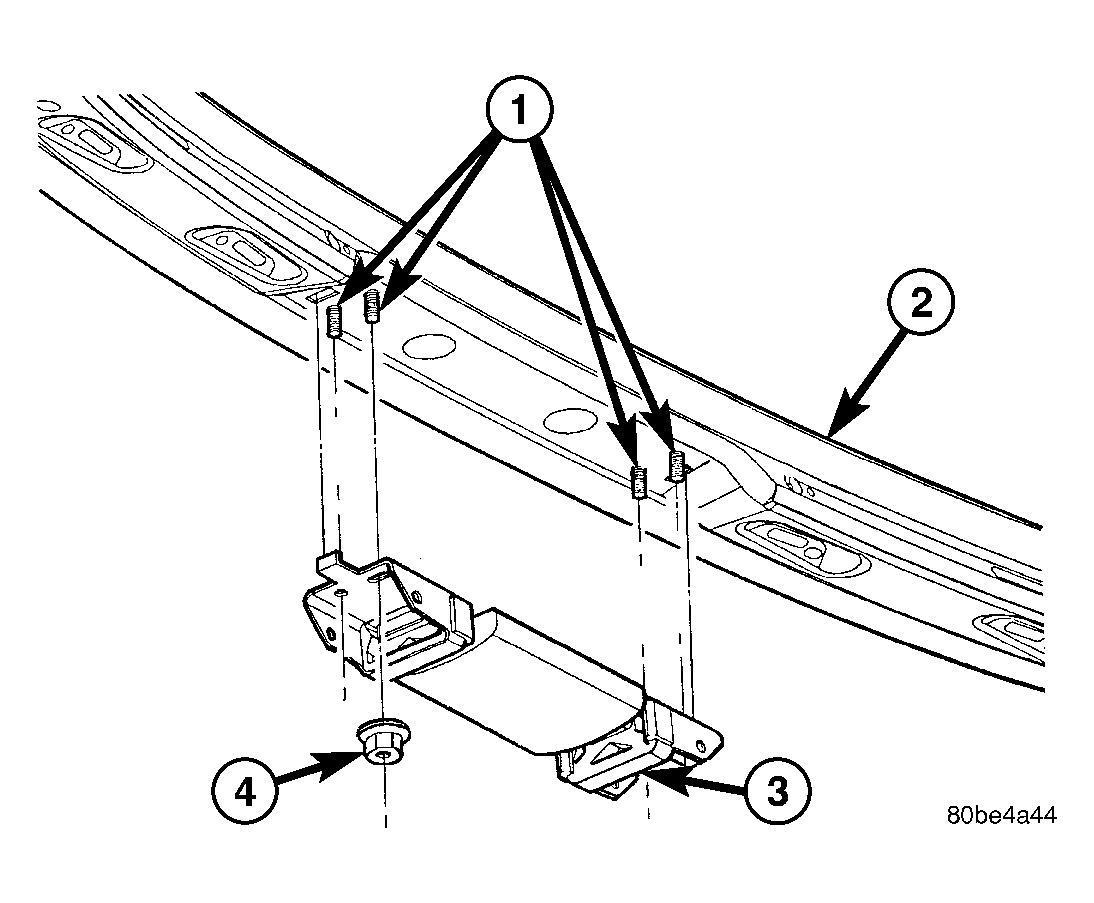

Fig 1: Windshield Header Damper

Courtesy of DAIMLERCHRYSLER CORP.

1 - STUDS

2 - HEADER PANEL

3 - WINDSHIELD HEADER DAMPER

4 - NUT(S)
