Front Seat: Removal: Notes

Position seat far enough forward to gain access to rear mount bolts on floor.
Remove bolts holding rear of seat track to floor. See Fig 1.
Slide seat rearward.
Remove bolts attaching front of the seat track to floor kick up.
Disconnect negative battery cable, if electrical seat.
Disconnect front seat wire harness connector from body harness connector.
CAUTION: Caution should be taken not to handle seat by adjuster release bar when removing spring loaded seat from vehicle.
Remove front seat from vehicle.

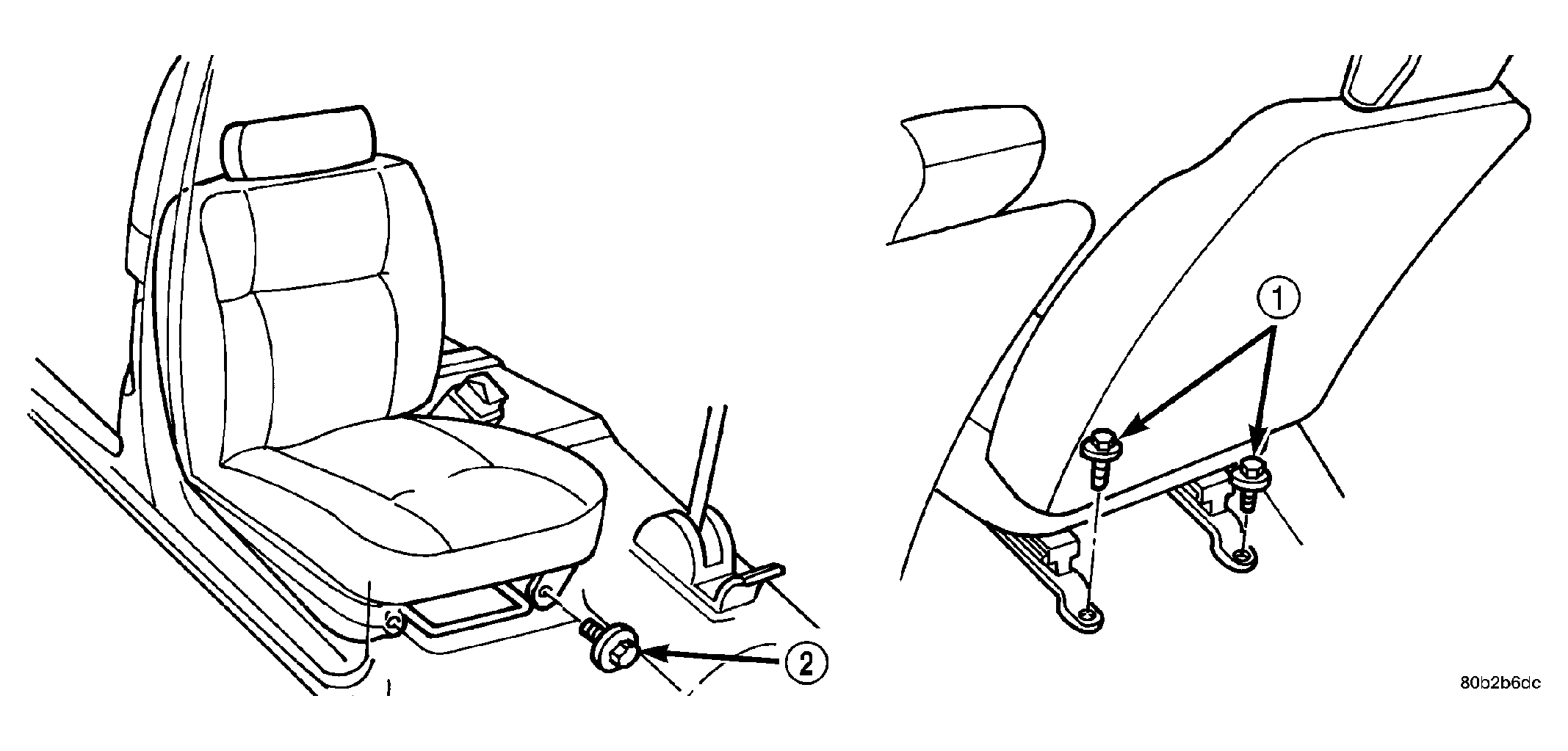

Fig 1: Front Seat Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR BOLTS

2 - FRONT BOLTS
