Sunroof Module Assembly: Removal

1. Move glass panel to the fully closed position.
2. Disconnect battery negative cable.
3. Recline both front seats.
4. Remove sunroof opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
5. Remove control switch. (Refer to BODY/SUNROOF/CONTROL SWITCH) .
6. Disconnect wire harness.
7. Remove headliner
8. Disconnect the drain tubes from sunroof housing.
9. Loosen fasteners attaching sunroof module assembly. See Fig 1.
10. With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel.

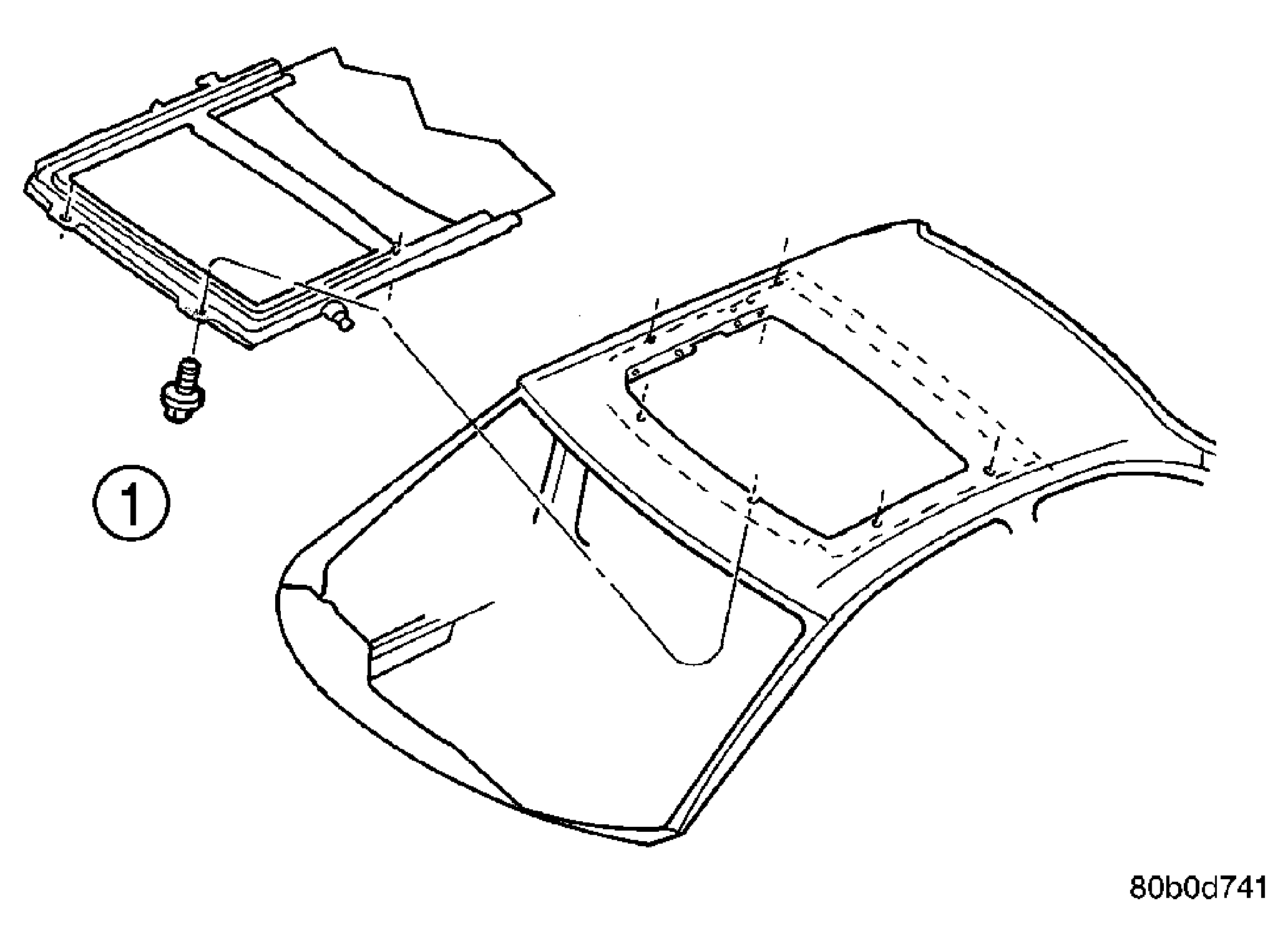

Fig 1: Sunroof Module Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - (6) SCREWS
