Installation - Jr27

CAUTION: Proper installation of wheel speed sensor harness is critical to continued system operation. Be sure that harness is installed properly to avoid harness contact with moving parts or over-extension, resulting in an open circuit.
  1. Install speed sensor head into brake adapter. See Figure. Install bolt through routing clip and secure wheel speed sensor in place. Tighten bolt to 8 N.m (75 in. lbs.)
  2. Install speed sensor harness routing clip on upper control arm. Install and securely tighten the routing clip attaching bolt.
  3. Install connector end of speed sensor harness through hole at frame rail.
  4. Install speed sensor harness sealing grommet into hole. Install the sealing grommet retainer and attaching bolt. See Figure. Securely tighten retainer attaching bolt.
  5. Lower vehicle.

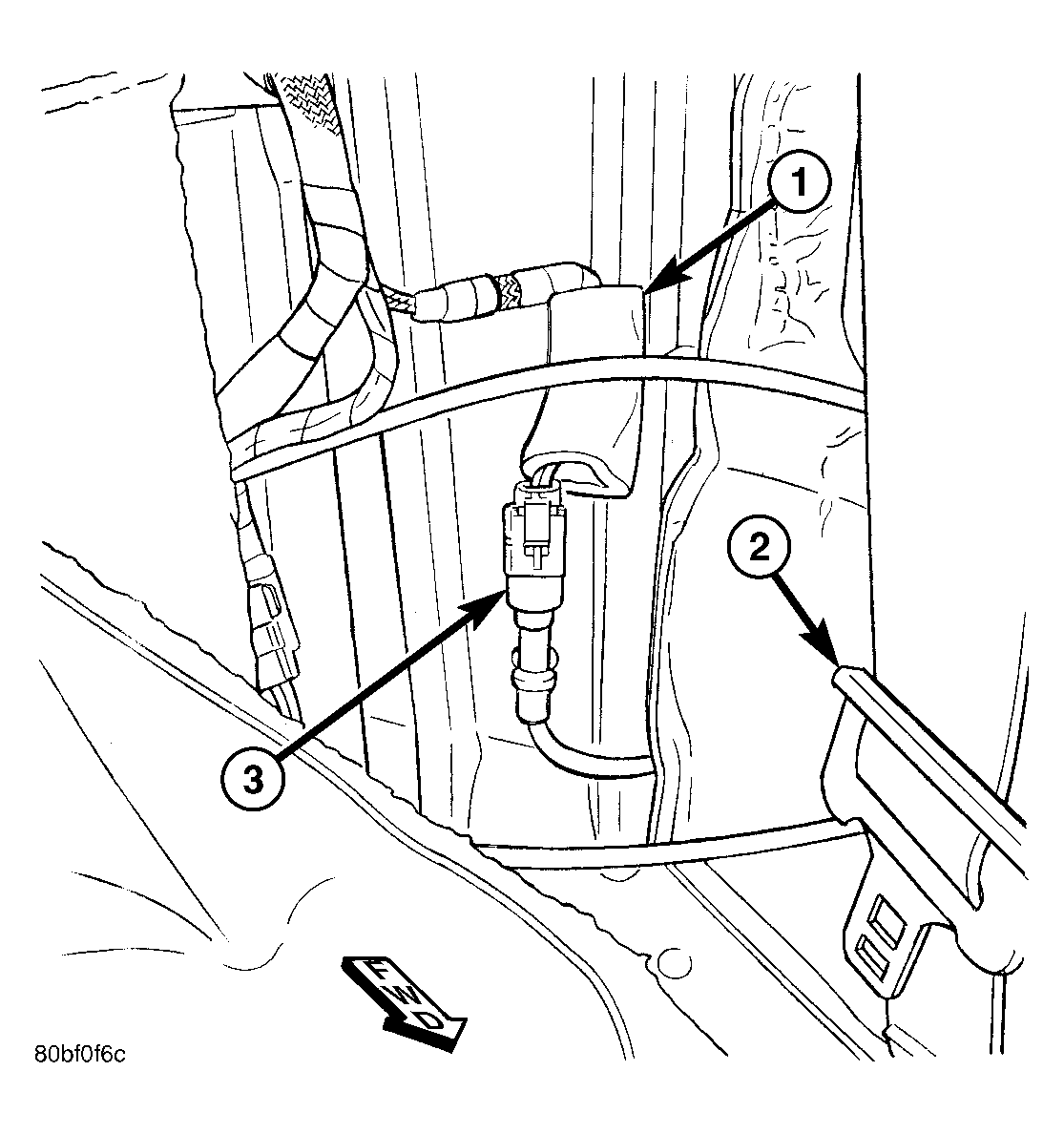

  6. Connect speed sensor harness connector to vehicle wiring harness. See Figure.

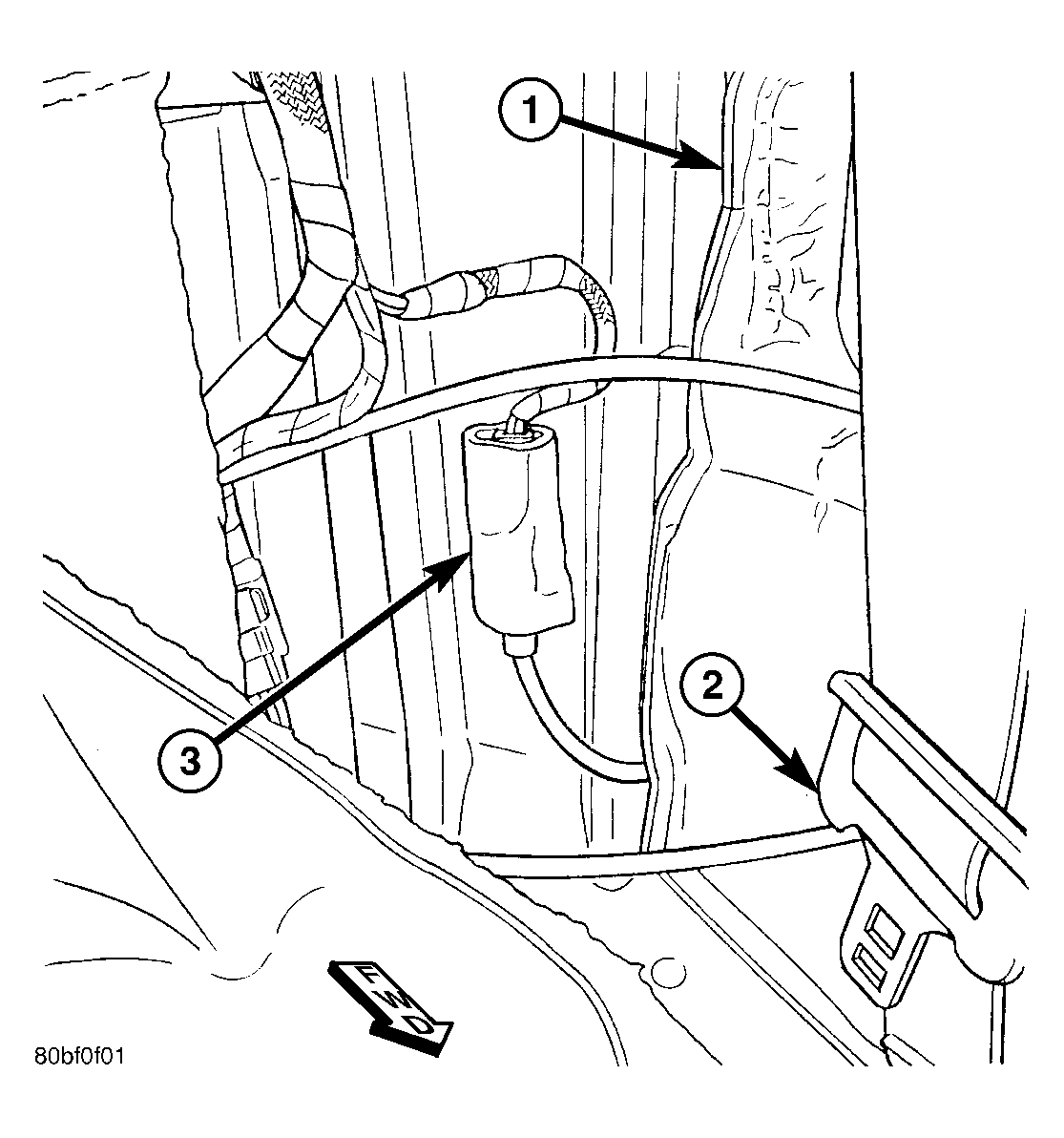

  7. Install foam sleeve back over the speed sensor harness connection to prevent rattling. See Figure.

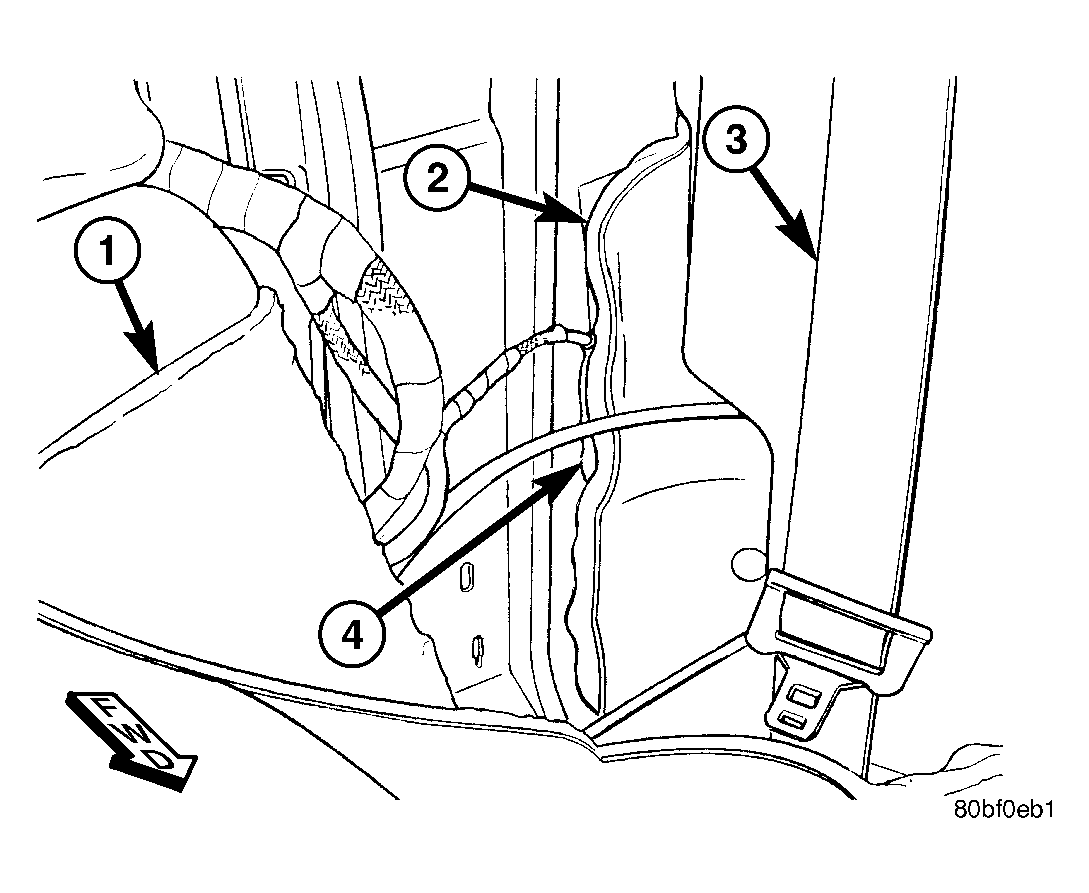

  8. Slide the sensor harness connector back behind the wheel house silencer. See Figure.
  9. Lay the main silencer pad back into its normal place.
  10. Install the rear seat back and cushion. (Refer to BODY/SEATS/REAR SEAT BACK - INSTALLATION) .
  11. Road test vehicle to ensure proper operation of the base and ABS systems.
