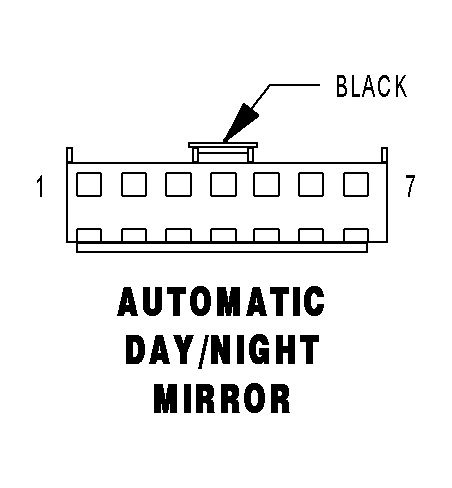

Automatic Day/Night Mirror Connector End View
AUTOMATIC DAY/NIGHT MIRROR - BLACK 7 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F20 20BK/WT | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 2 | Z312 20BK (JR27) | GROUND |
| 2 | Z312 20BK/LG (JR41) | GROUND |
| 3 | L1 18BK/VT (JR27) | BACKUP LAMP FEED |
| 3 | L1 20BK/VT (JR41) | BACKUP LAMP FEED |
| 4 | - | - |
| 5 | - | - |
| 6 | M2 18BK/YL (JR27) | COURTESY LAMPS DRIVER |
| 7 | M1 20BK/RD (JR27) | FUSED B(+) |
