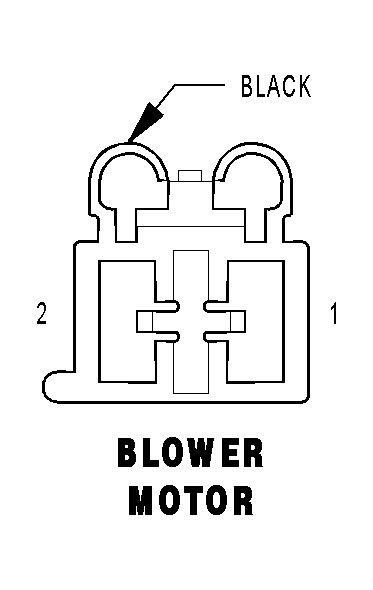

Blower Motor Connector End View
BLOWER MOTOR - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C72 12GY (ATC) |
BLOWER MOTOR SUPPLY |
| 1 |
C7 12BK (MTC) |
BLOWER MOTOR DRIVER |
| 2 |
C71 12DB (ATC) |
BLOWER MOTOR GROUND |
| 2 |
C1 12DG (MTC) |
FUSED IGNITION SWITCH OUTPUT (RUN) |
