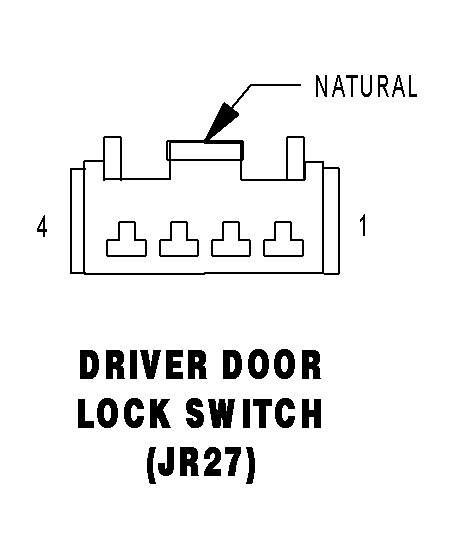

Driver Door Lock Switch (Convertible) Connector End View

DRIVER DOOR LOCK SWITCH (JR27) - NATURAL 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	M1 20PK	FUSED B(+)
2	-	-
3	-	-
4	P97 20WT/DG	DRIVER DOOR SWITCH MUX
