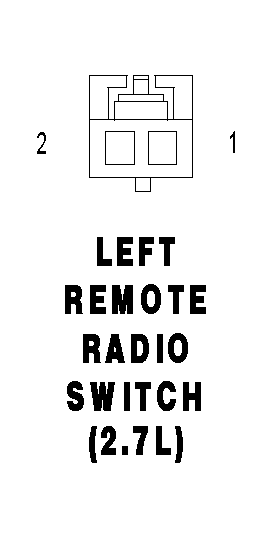

Left Remote Radio Switch (2.7L) Connector End View

LEFT REMOTE RADIO SWITCH (2.7L) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X3 22BK/RD	HORN/RADIO CONTROL MUX
2	Z123 22BK/OR	GROUND
