Right Backup Lamp Connector End View

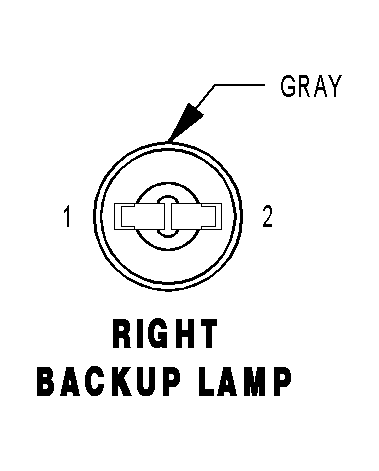

RIGHT BACKUP LAMP - GRAY 2 WAY

GCJR680268Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z151 18BK GROUND
2 L1 18VT/BK BACKUP LAMP FEED
