Battery Heater Blanket: Removal
- Remove the battery and the battery heater blanket from the battery tray as a unit. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .

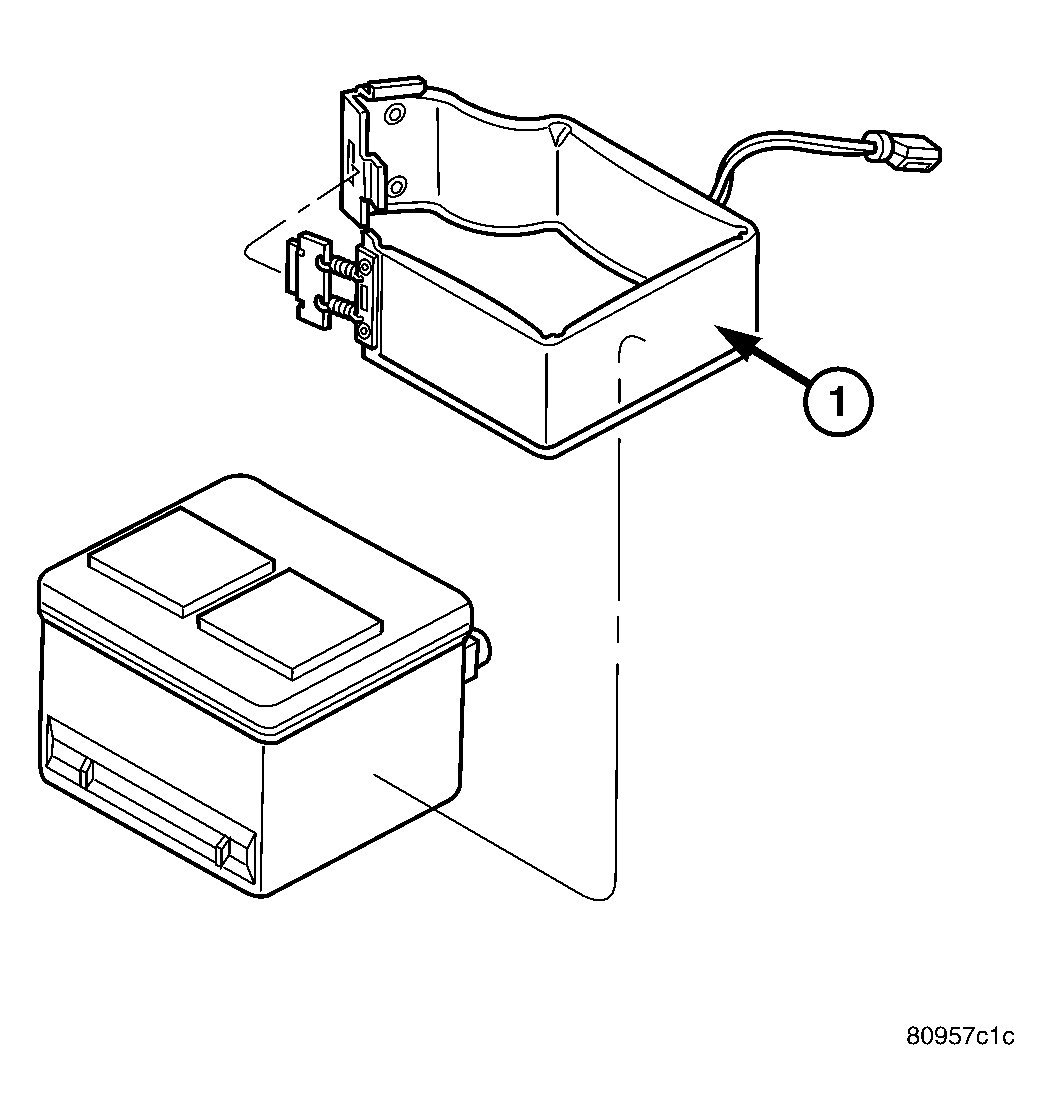

1 - BATTERY HEATER BLANKET - Carefully slide the heater blanket straight off the battery case. See Fig 1.
