Removal - 4 Cylinder

  1. Disconnect battery negative cable from remote negative terminal on shock tower. See Fig 1.

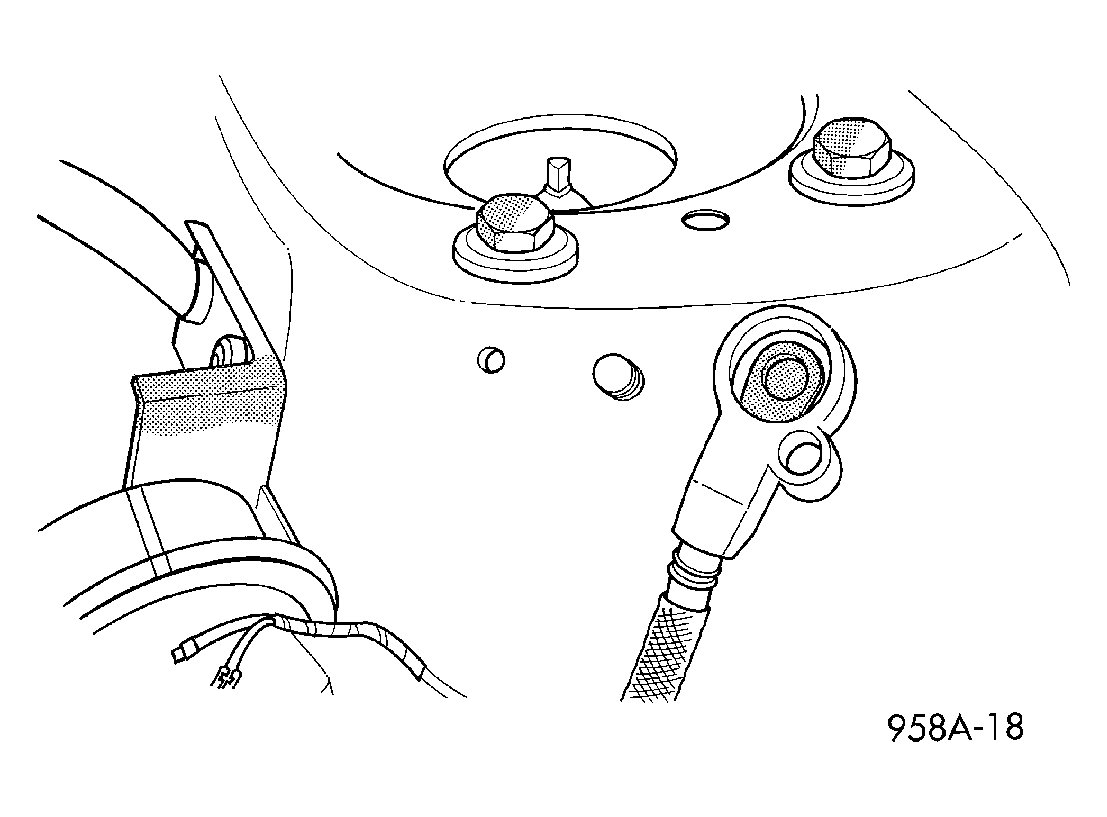

    Fig 1: Remove Battery Cable at Shock Tower
    GC0031212Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove belt cover.
  3. Unplug field circuit from generator.
  4. Remove B+ terminal cover by spreading the cover with a small flat blade tool.
  5. Remove the B+ terminal wire and nut. See Fig 2.
    Fig 2: Locating Wiring Connections
    GC0031213Courtesy of DAIMLERCHRYSLER CORP.
    1 - B+ TERMINAL
    2 - CASE GROUND
    3 - FEED
    4 - TO PCM
  6. Raise vehicle and support.
  7. Remove the accessory drive splash shield.
  8. Remove the accessory drive belt. Refer to COOLING for more information.
  9. Lower vehicle.
  10. Remove the MAP sensor from the intake manifold. See Fig 3.
    Fig 3: Generator And Map Sensor
    GC0031211Courtesy of DAIMLERCHRYSLER CORP.
    1 - Generator
    2 - MAP Sensor
  11. Remove the generator bolts.
  12. Remove the generator from vehicle. See Fig 4.

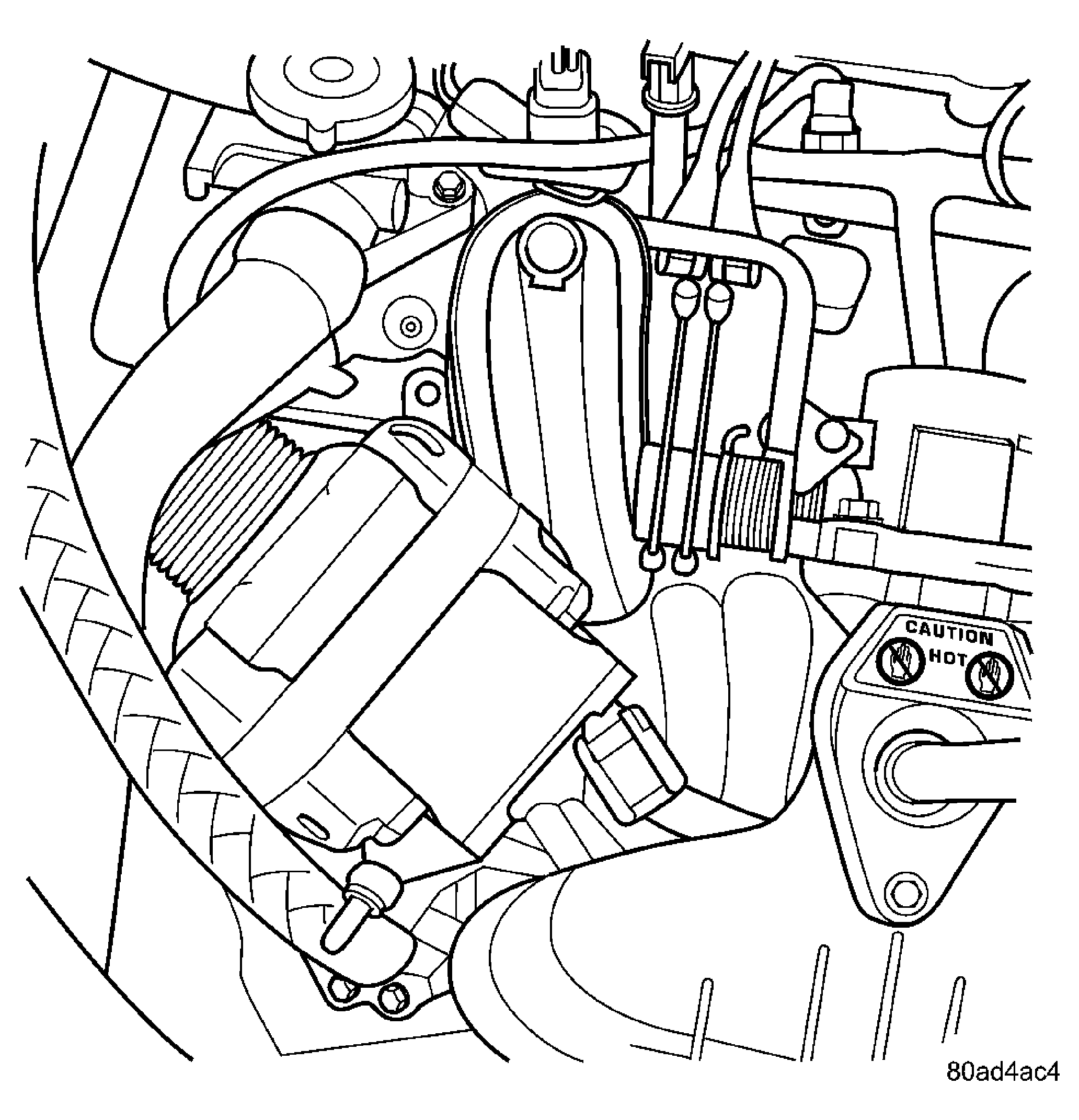

Fig 4: Generator Removal
GC0031210Courtesy of DAIMLERCHRYSLER CORP.
